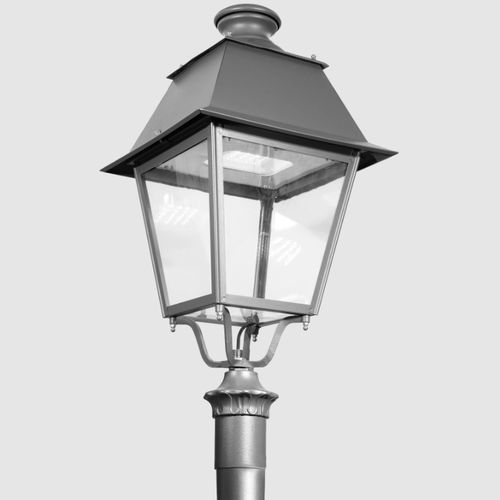

Contemporary urban lantern RIBEIRA GEN2

aluminumpolycarbonateLED

RIBEIRA GEN2 is a four-sided urban lantern that pairs a traditional oil-lamp aesthetic with modern LED technology, designed for architects and urban planners seeking to preserve historic character while upgrading to energy-efficient, maintainable lighting.

Applications

• Urban and residential streets
• Bridges
• Bike and pedestrian paths
• Railway stations and metro platforms
• Car parks
• Squares and pedestrian areas

Key features

• Historic authenticity: silhouette and details inspired by traditional lanterns to integrate with parks, historic town centres and landmarks.
• Modern circular design: all‑in‑one LED module combining Schréder’s latest photometric engines and electronics for simplified access, replacement and interchangeability.
• Versatile lighting performance: wide range of light distributions and clear or frosted protectors to ensure precise, energy‑efficient illumination and improved visual comfort for low‑height applications.
• Customisation: multiple finishes and options to balance heritage aesthetics and contemporary urban settings.

Control options

• 1–10V
• DALI
• AmpDim
• Custom dimming profiles (supports adaptive dimming)

Technical characteristics / specifications

• Commercial name: RIBEIRA GEN2
• Brand: Schréder
• Recommended installation height: 3 – 7 m
• Compliance: CE mark; ROHS compliant
• Electrical class: Class I EU; Class II EU
• Nominal voltage: 220–240V – 50–60Hz
• Surge protection: 10 kV
• Control protocols: 1–10V; DALI
• Control options: AmpDim; Custom dimming profile (supports adaptive profiles)
• Luminaire luminous flux: 1,200 – 10,500 lm
• Power consumption: 13 – 89 W
• Luminaire efficacy (up to): 148 lm/W
• LED colour temperature options: Warm White 722; Warm White 727; Warm White 827; Warm White 730; Warm White 830; Neutral White 740; Cool White 757
• Colour rendering index (CRI): 70; 80
• Housing: Aluminium; Galvanised steel
• Optic: PMMA
• Protector: Polycarbonate (clear or frosted options)
• Ingress protection: IP66
• Impact resistance: IK08
• LED lifetime (all configurations): 100,000 h - L92 (may vary with size/configuration)
• Operating temperature (Ta): -30°C up to +55°C / -22°F up to 131°F (with wind effect) — dependent on configuration
• Dimensions (AxBxC): 505 x 820 x 505 mm | 19.9 x 32.3 x 19.9 in
• Weight: 13.0 kg | 28.6 lbs
• Mounting possibilities: Post‑top ¾
