Traditional urban lantern TEMPORE GEN2
aluminumpolycarbonatePMMA

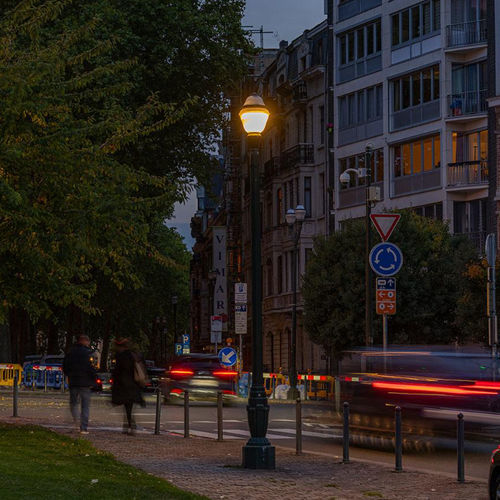

Traditional urban lantern - TEMPORE GEN2 - Schréder–Comatelec - aluminum / polycarbonate / PMMA
Traditional urban lantern - TEMPORE GEN2 - Schréder–Comatelec - aluminum / polycarbonate / PMMA
Traditional urban lantern - TEMPORE GEN2 - Schréder–Comatelec - aluminum / polycarbonate / PMMA - image - 2
Traditional urban lantern - TEMPORE GEN2 - Schréder–Comatelec - aluminum / polycarbonate / PMMA - image - 3
Traditional urban lantern - TEMPORE GEN2 - Schréder–Comatelec - aluminum / polycarbonate / PMMA - image - 4
Traditional urban lantern - TEMPORE GEN2 - Schréder–Comatelec - aluminum / polycarbonate / PMMA - image - 5
Traditional urban lantern - TEMPORE GEN2 - Schréder–Comatelec - aluminum / polycarbonate / PMMA - image - 6
Add to favorites
Compare this product

Characteristics

Style
traditional
Material
aluminum, PMMA, polycarbonate
Light source
LED
Diffuser shape
other shapes
Protection class
IP66
Location
urban
Market
for public space
Height

740 mm
(29.1 in)

Length

395 mm
(16 in)

Width

395 mm
(16 in)

Color temperature

2,200 K, 2,700 K, 3,000 K, 4,000 K

Color rendering index (CRI)

70 unit, 80 unit

Luminous flux

Min.: 1,700 lm

Max.: 11,500 lm

Power

Min.: 15 W

Max.: 89 W

Description

Overview
TEMPORE GEN2 is a heritage‑inspired urban LED luminaire that combines an Art Nouveau silhouette with modern LED performance and connectivity for city lighting applications.

Applications
  • Urban & residential streets
  • Bridges
  • Bike & pedestrian paths
  • Railway stations & metros
  • Squares & pedestrian areas


Key features
  • Heritage‑inspired Art Nouveau design that enhances urban architectural contexts
  • High‑performance LED engine delivering precise, energy‑efficient illumination
  • Wide range of photometric distributions for glare‑free light and visual comfort in low‑height installations
  • Weather‑resistant aluminium housing with PMMA optics and polycarbonate protector for reduced maintenance


Control options
  • 1‑10V
  • DALI
  • Remote management (connected‑ready)
  • Optional NEMA 7‑pin or Zhaga socket for integration into remote lighting management systems


Additional information
  • Designed to support remote monitoring and management to optimise energy use and maintenance operations
  • Compatible with Schréder EXEDRA for advanced luminaire control and city‑wide smart lighting management


Technical specifications
  • Recommended installation height: 5 - 7 m
  • Compliance: CE mark, ENEC, ENEC+, Zhaga‑D4i certified, UKCA
  • Electrical class: Class I EU or Class II EU
  • Nominal voltage: 220‑240V – 50‑60Hz
  • Control protocols: 1‑10V, DALI; Remote management option
  • Socket options (optional): NEMA 7‑pin, Zhaga
  • Associated control system: Schréder EXEDRA
  • Luminaire output flux: 1,700 - 11,500 lm
  • Power consumption: 15 - 89 W
  • Luminaire efficacy: up to 161 lm/W
  • LED colour temperatures: Warm White 722, 727, 730, 830; Neutral White 740
  • Colour rendering index (CRI): 70, 80
  • Housing: Aluminium
  • Optic: PMMA
  • Protector: Polycarbonate
  • Tightness level: IP66
  • Impact resistance: IK08
  • Dimensions (AxBxC): 395 x 740 x 395 mm | 15.6 x 29.1 x 15.6 in
  • Weight: 6.4 kg | 14.1 lbs
  • Mounting: Post‑top on 1''1/4 gas male (post‑top mounting)
