Pump station Sanicubic 1 GR

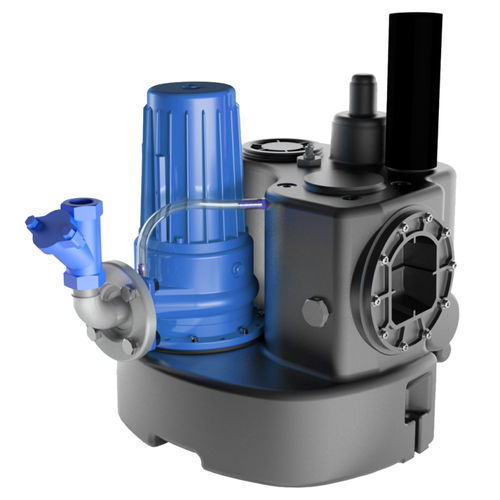

The SANICUBIC 1 GR is ideal for shops and private homes. Wheel Dilacrator System Available in single-phase or three-phase 5 versions: from 20 to 39m of lifting height The SANICUBIC®1 GR is a lifting station with 1 engine certified IP68, equipped with a high performance grinding wheel system. The SANICUBIC®1 GR is available in 5 versions for 4 high level lifting performances. It has 5 possible inlets to lift all types of waste water in the most demanding configurations. The station is delivered as standard with its remote control box which includes a pneumatic control as well as audible and visual alarms. Order type - Control Box ZPS 1 - Control Box ZPS 1 - Control Box ZPS 1 - Control Box ZPS 1 - Control Box ZPS 1 Tank - PE LD - PE LD - PE LD - PE LD - PE LD Pump body - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 Motor body - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 Wheel - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 Voltage - 230 V - 400 V - 400 V - 400 V - 400 V Frequency - 50-60 Hz - 50-60 Hz - 50-60 Hz - 50-60 Hz - 50-60 Hz Power consumption P1 - 2200 W - 2100 W - 2100 W - 3900 W - 3900 W Power output P2 - 1700 W - 1700 W - 1700 W - 3200 W - 3200 W Mode of operation - S3 25% - S3 25% - S3 25% - S3 25% - S3 25% Protection index - IP68 - IP68 - IP68 - IP68 - IP68
