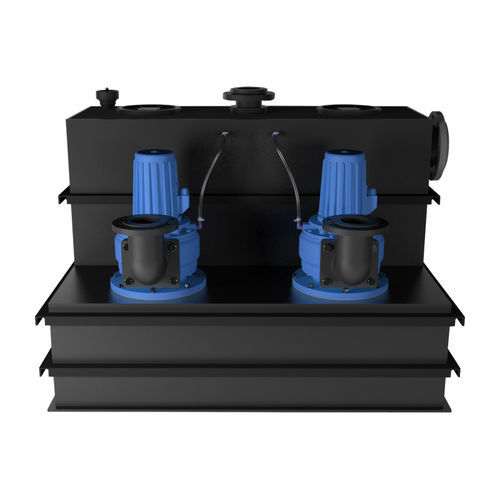

Pump station Sanicubic 2 SC

The SANICUBIC 2 SC is a two-motor lifting station for commercial applications. Single-channel cutting blade Available in three phases 4 versions: from 125 to 175 m3 / h discharged The SANICUBIC 2 SC is a lifting station with 2 IP68 certified motors, each with a single-channel high-performance cutting blade. The SANICUBIC 2 SC is available in 4 versions for 4 high volume lifting performances. It has a DN 150 inlet for lifting large volumes of wastewater. The station is delivered with a remote control box as well as audible and visual alarms. Order type - Control Box ZPS 2 - Control Box ZPS 2 - Control Box ZPS 2 - Control Box system PS2 Materials Tank - PE HD - PE HD - PE HD - PE HD Pump body - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 Motor body - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 Wheel - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 Electrical characteristics Voltage - 400 V - 400 V - 400 V - 400 V Frequency - 50-60 Hz - 50-60 Hz - 50-60 Hz - 50-60 Hz Power consumption P1 - 4000 W - 5500 W - 6300 W - 8700 W Power output P2 - 3000 W - 4000 W - 5500 W - 7500 W Mode of operation - S3 25% - S3 25% - S3 25% - S3 25% Protection index - IP68 - IP68 - IP68 - IP68 Hydraulics HMT max. - 10 m - 13 m - 18 m - 22 m Max. flow rate - 120 m³/h - 140 m³/h - 160 m³/h - 165 m³/h DN inlets diameter - 150 - 150 - 150 - 150 DN discharge diameter - 100 - 100 - 100 - 100 DN ventilation diameter - 100 - 100 - 100 - 100 Total volume - 1000 L - 1000 L - 1000 L - 1000 L
