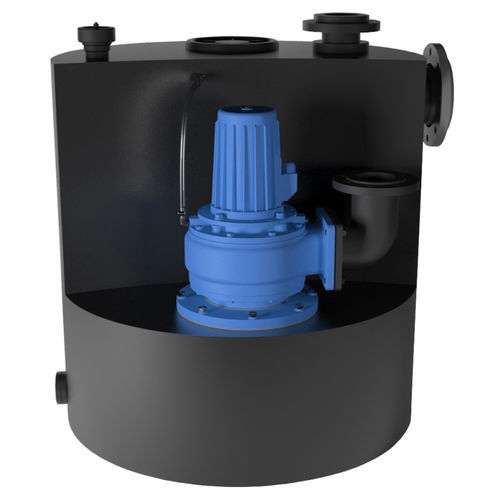

Pump station Sanicubic 1 SC

The SANICUBIC 1 SC is ideal for evacuating large quantities of effluent. Single-channel wheel system Available in three-phase 4 versions: from 125 to 175 m3/h discharged The SANICUBIC®1 SC is a lifting station with 1 motor certified IP68, equipped with a high performance single channel wheel. The SANICUBIC®1 SC is available in 4 versions for 4 high volume lifting performances. It benefits from a DN 150 inlet for lifting large volumes of wastewater. The station is delivered as standard with its remote control box which includes a pneumatic control as well as audible and visual alarms. Order type - Control Box ZPS 1 - Control Box ZPS 1 - Control Box ZPS 1 - Control Box system PS2 Materials Tank - PE HD - PE LD - PE HD - PE HD Pump body - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 Motor body - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 Wheel - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 Electrical characteristics Voltage - 400 V - 400 V - 400 V - 400 V Frequency - 50-60 Hz - 50-60 Hz - 50-60 Hz - 50-60 Hz Power consumption P1 - 4000 W - 5500 W - 6300 W - 8700 W Power output P2 - 3000 W - 4000 W - 5500 W - 7500 W Mode of operation - S3 25% - S3 25% - S3 25% - S3 25% Protection index - IP68 - IP68 - IP68 - IP68
