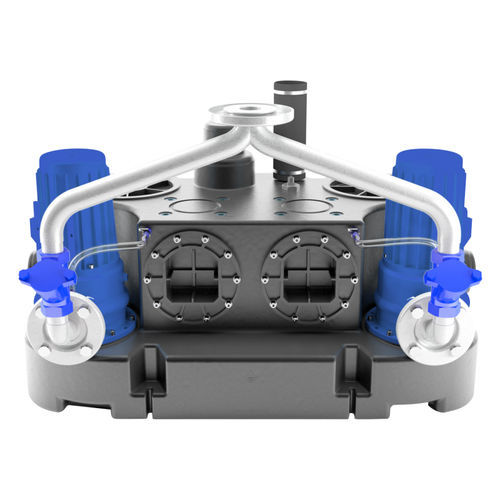

Pump station Sanicubic 2 GR

The SANICUBIC 2 GR is a 2-motor lifting station ideal for small commercial premises and large domestic dwellings. Two motors with high-performance cutting blades Available in three phases 4 versions: from 20 to 39 m of lift The SANICUBIC 2 GR is a lifting station with two IP68 certified motors and two pumps with cutting blade systems. The SANICUBIC 2 GR is available in 4 versions for 4 high level lifting performances. It has 5 inlets, so it is possible to collect all waste water even in the most difficult situations. The station is supplied with a remote control box and audible and visual alarms. Order type - Control Box ZPS 2 - Control Box ZPS 2 - Control Box ZPS 2 - Control Box ZPS 2 Materials Tank - PE LD - PE LD - PE LD - PE LD Pump body - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 Motor body - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 Wheel - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 - EN-GJL-200 Electrical characteristics Voltage - 400 V - 400 V - 400 V - 400 V Frequency - 50-60 Hz - 50-60 Hz - 50-60 Hz - 50-60 Hz Power consumption P1 - 2100 W - 2100 W - 3900 W - 3900 W Power output P2 - 1700 W - 1700 W - 3200 W - 3200 W Mode of operation - S3 25% - S3 25% - S3 25% - S3 25% Protection index - IP68 - IP68 - IP68 - IP68
