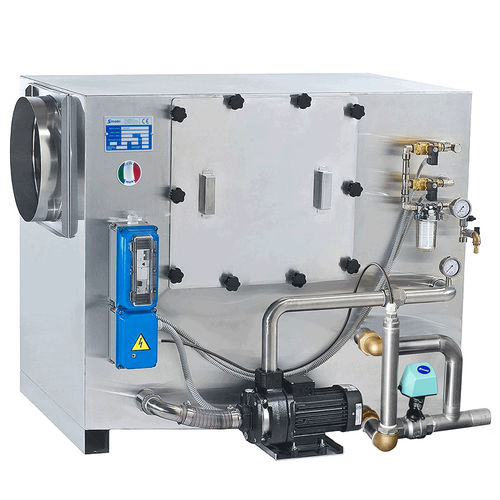

Grease reduction smoke purifier MAXI GRILL 400

watercountertopcommercial

Professional charcoal or wood grill? Not without our Smoki Maxi Grill! Smoki Maxi Grill is the ideal solution for eliminating grease and soot produced by your grill, with an airflow capacity of up to 10,000 m³/h. It achieves a 95% reduction in both soot and grease. The smoke from your wood-fired oven enters the abatement system, where it is treated by a water wash generated by special nozzles within a manifold. It is then directed through three filtration sections designed to capture grease: two droplet separators separated by a metal mesh. This process causes soot and grease to settle into the water collected in the lower part of the unit. The cleaned smoke exits from the opposite side and continues its path through the flue. The washing system operates on a water recirculation cycle managed by an electric pump. While the recirculating system is running, a solenoid valve introduces clean water into the abatement system, and the same amount of non-evaporated water is discharged into the sewage system. This setup ensures effective washing while limiting water consumption. Installation of our abatement systems is simple and versatile. The Maxi Grill abatement system can be installed at any point along the flue pipe from your oven, whether indoors or outdoors. For outdoor installation, we also provide a dedicated protective panel to shield the unit from weather elements. The necessary requirements are a mains water supply, a sewage drain, and an electrical connection to power the unit. It is also crucial to use a properly sized, sealed flue made of AISI 316 stainless steel, as the fumes after water treatment are moisture-rich.
