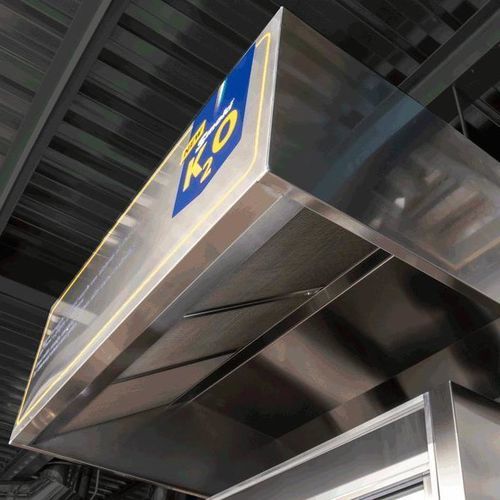

Wall-mounted range hood K2O

for commercial kitchenductedwith touchscreen

The Cappa K2O is a professional hood with an integrated soot and grease abatement system, designed for ovens and charcoal grills. It features a water-wash hood with a recirculating system, achieving a 95% reduction in soot and grease, making it ideal for commercial kitchens seeking efficient air treatment and environmental protection.

Key Features

• Integrated water-based smoke washing and recirculation system for effective soot and grease removal.
• Constructed from high-quality AISI 316/304 stainless steel for durability and corrosion resistance.
• Advanced multi-stage filtration: primary labyrinth filters, mesh filter section, and secondary labyrinth filters for optimal air purification.
• Remote unit with water pumping system connects to internal nozzles and includes a filtering/decanting system for recirculated water.
• Electronic remote controller with 7” touch screen display for monitoring water flow rate, pump pressure, tank water level, automatic discharge, operational errors, and maintenance sequences.
• Easy installation with requirements for mains water supply, sewage drain, electrical connection, and smoke extractor.
• Frontal slotted stainless steel cover protects all mechanical and electrical parts.
• Delivered with a full manual (downloadable via QR code) and CE Certification.
• Made in Italy, ensuring quality and reliability.

Work Process

• Smoke from ovens or grills is drawn into the hood and passes through primary labyrinth filters for initial soot and grease capture.
• Inside the hood, smoke is subjected to a water wash via collector nozzles, then directed through a mesh filter section for air/water distribution, followed by inertial droplet separators.
• The cleaned smoke is then drawn into the flue connected to the hood.

Maintenance

• Regular maintenance by the operator is crucial to maintain peak performance.
• Simplified maintenance procedures are supported by the electronic control system.

Applications

• Ideal for charcoal grills and ovens in professional kitchens.
• Ensures compliance with environmental standards by significantly reducing particulate emissions.

Characteristics / Technical Specifications

• Stainless steel AISI 316/304 hood structure
• Washing system with stainless steel spiral nozzles
• Predisposed water inlet and discharge on both left and right sides of the hood
• Stainless steel primary labyrinth filters for soot and grease interception
• Stainless steel mesh filters section
• Stainless steel secondary labyrinth filters
• Remote unit with water pumping system for connection to internal nozzles and filtering/decanting system for returned water
• Remote controller with 7” touch screen display: water flow rate, pump pressure, tank water level, automatic discharge, operational errors, and maintenance sequences
• 1/2” connection water supply
• Discharge to sewer ø40 mm
• Frontal slotted stainless steel cover for protection of mechanical and electrical parts
• Requires a properly sized, sealed flue made of AISI 316 stainless steel due to high moisture content in fumes after water washing
• Delivered with full manual (via QR code) and CE Certification
• Made in Italy
