Mixer tap with soap dispenser TUBULAR DUO

for washbasinwall-mountedelectronic

Short description

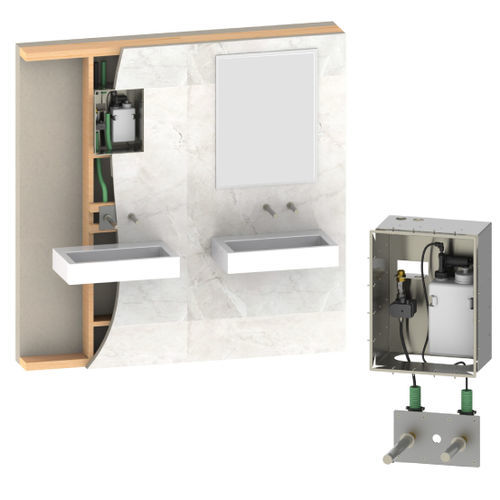

Touch-free soap dispenser and faucet for recessed mounting behind mirrors or panels. The Recessed mounting duo is a touch-free, wall-mounted electronic faucet and soap dispenser set designed for commercial restrooms. It features an IP67 dual power input box with power splitter to a 12V transformer, an integrated 9V lithium backup battery, and adjustable sensor and soap settings via remote control. Constructed in Stainless Steel AISI316 for vandal resistance and durability, it is ideal for compact or harsh installations such as public transport washrooms, saving water and reducing cross-contamination.

Variants

• Recessed mounting duo Extreme CS AISI316
• Recessed mounting duo D28 DP AISI316

Technical info
Includes an IP67 dual power input box connected with a power splitter to a 12V transformer. Integrated backup system uses a 9V lithium battery to enable normal use during power failure. Sensor-activated faucet and soap dispenser with settings adjustable by remote control. Soap dispenser includes a 2 L soap bottle and bottle support; automatic non-drip closure. Stainless Steel AISI316 body provides vandal resistance and long life. Filter included. Sensor includes a low battery indicator. Remote-controlled functions: soap quantity selection, refill mode, temporary off, sensor range, security time, delay in/out, on-off and reset to factory settings. Power splitter enables both units to be powered from the same transformer.

Operation
The touch-free electronic faucet and soap dispenser activate automatically when users place their hands in the sensor range and stop when hands are removed. The soap dispenser closes automatically without dripping. The Recessed mounting duo helps ensure hygiene and efficient use of water and soap in constrained commercial washrooms.

Application
Combines an elegant recessed design with vandal-resistant construction for demanding environments. Easy to install and long-lasting even in harsh installations. Ideal where compact units are required, for example public transport washrooms. Reduces water and soap consumption and prevents cross-contamination.

Features / technical specifications

• Product type: Touch-free wall-mounted electronic faucet and matching touch-free electronic soap dispenser (duo)
• Body material: Stainless Steel AISI316
• Installation: Recessed behind mirror or panel; wall mounted
• Water supply: Cold or premixed water (1 inlet)
• Power: IP67 dual power input box; powered via power splitter and 12V transformer
• Backup power: Integrated 9V lithium battery for use during power failure
• Sensor: Concealed sensor built into spout; adjustable sensor range
• Controls (via remote): Sensor range, security time, delay in, delay out, on-off, reset to factory settings; soap quantity selection, refill mode, temporary off
• Soap system: Stainless steel soap dispenser with 2 L bottle and bottle support; automatic non-drip closure
• Accessories included: Filter, power splitter
• Durability: Vandal-resistant design for harsh installations
• Benefits: Saves water and soap; prevents cross-contamination; ideal for compact commercial restrooms
