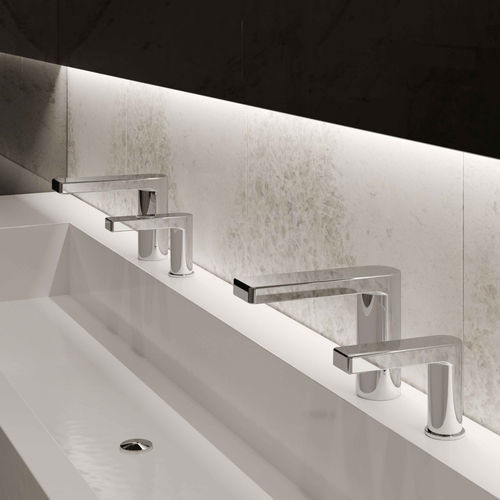

Mixer tap with soap dispenser BOREAL 1000 DUO

for washbasincountertopelectronic

Product description The Boreal 1000 Soap & Water Duo pairs a touch-free electronic faucet and an automatic soap dispenser in a coordinated deck-mounted set. The minimalistic square design with sharp contours suits modern commercial washrooms. The faucet is activated by a concealed sensor in the spout and features a solid brass one-piece body with chrome plating (other finishes available). The integrated mixer provides hot and cold water. A filter and a latching solenoid valve are included; the sensor has a low battery indicator.

Faucet features

• Deck-mounted touch-free electronic faucet with concealed spout sensor.
• Hot and cold water supply via mixer (2 inlets).
• Chrome plated body; alternative finishes available.
• Solid brass one-piece construction.
• Powered by dual power input box: 6 × 1.5V AA batteries or 9V transformer; 12V transformer supported.
• Filter included.
• Latching solenoid valve mounted inside the faucet body.
• Adjustable settings via remote control: sensor range, security time, delay in, delay out, on/off and reset to factory settings; low battery indicator.

Soap dispenser features

• Matching touch-free automatic soap dispenser for deck-mounted installations.
• Adjustable dosage and sensor range via remote control.
• Peristaltic pump design prevents backflow and clogging.
• Remote functions: soap quantity selection, refill tank indication, temporary off, reset to factory settings.
• Chrome plated body; other finishes available.
• Includes 1 L soap bottle and bottle support.
• Compatible with any non-proprietary soap.

Application The faucet and soap dispenser activate automatically when hands enter the sensor range and stop when removed. The soap dispenser closes without dripping. The Boreal Soap & Water Duo is designed to enhance hygiene and reduce contamination in commercial restrooms by providing a coordinated, automated handwashing solution.

Use Engineered for commercial environments with vandal-resistant features and durable construction. Suitable for offices, hotels, restaurants and other high-traffic washrooms. Easy to install and maintain; helps save water and soap while preventing cross-contamination.

Additional information (technical)
Power source: 12V transformer; 6×1.5V AA batteries; 9V transformer
Water supply: Hot & Cold (2 inlets)
Installation: Deck Mounted

Specifications (technical)

• Part Number: 212056
• Model / Series: Boreal 1000
• Power source options: 12V transformer, 9V transformer, or 6 × 1.5V AA batteries (dual power input box)
• Water supply: Hot & Cold (2 inlets)
• Installation: Deck mounted
• Body material: Solid brass one-piece construction
• Finish: Chrome plated (other finishes available)
• Sensor: Concealed sensor built into spout; adjustable range; low battery indicator
• Valve: Latching solenoid valve mounted inside faucet body
• Filter: Included
• Soap system: 1 L soap bottle included; peristaltic pump to prevent back flow and clogging; compatible with non-proprietary soaps
• Adjustable settings (via remote control): sensor range, security time, delay in, delay out, on/off, reset to factory settings; soap quantity selection, soap tank refill, temporary off, reset
• Recommended applications: commercial restrooms, offices, hotels, restaurants
