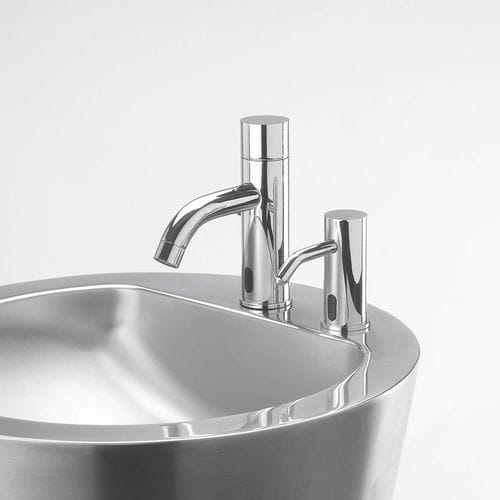

Mixer tap with soap dispenser EXTREME DUO

for washbasincountertopelectronic

Overview
Touch-free lavatory solution combining an Extreme touchless deck-mounted electronic faucet and a matching touch-free electronic soap dispenser. Designed for commercial restroom environments to provide a complete germ-free and automated set. Available with tall or short faucet bodies, long or regular spouts, and configured for mixer (hot & cold) or cold/premixed water. Filter included with the faucet.

Faucet features

• Extreme touch-free deck-mounted electronic faucet activated by an infrared sensor.
• Compatible with cold or premixed water; filter supplied.
• Chrome plated body as standard; alternate finishes available on request.
• Latching solenoid valve located above deck inside the unit to improve vandal resistance.
• Standard installation as a conventional faucet; battery connection completes installation for battery versions.
• Battery models include a low battery indicator.
• Settings configurable via Stern remote control: sensor range, security time, delay in, delay out and on/off.
• Optional 24-hour hygiene flush function available on request.

Soap dispenser features

• Matching touch-free electronic soap dispenser for deck-mounted installations; infrared sensor activation.
• Chrome plated body standard; other finishes available.
• Includes low battery indicator (battery versions).
• Supplied with a 1 liter soap bottle and a bottle support.
• Optional remote-installation accessories: extension cable and longer piping.
• Functions configurable via Stern remote control: soap quantity selection, refill mode, temporary off, factory reset.

Application
Automatic activation when users place hands in the sensor range; the soap dispenser closes automatically to prevent dripping. The Extreme Soap and Water Duo ensures hygiene and cleanliness in commercial restrooms by providing a fully automated, touch-free washpoint.

Use
Combines an elegant design with vandal-resistant components and straightforward installation. Suitable for heavy-use and harsh environments. Reduces water and soap consumption and prevents cross-contamination. Ideal for offices, hotels, restaurants and other commercial restroom settings.

Technical table
Power options: 12V transformer, 9V transformer, 9V alkaline battery or 6×1.5V D batteries.
Water supply: cold or premixed water (single inlet).
Installation: deck mounted.

Specifications

• Product type: Touchless deck-mounted electronic faucet paired with touch-free soap dispenser.
• Sensor activation: Infrared sensor for both faucet and dispenser.
• Body finish: Chrome plated standard; other finishes available.
• Valve: Latching solenoid valve located above deck (faucet) for vandal resistance.
• Battery indicator: Low battery indicator included (battery versions).
• Soap capacity: 1 liter bottle included (soap dispenser).
• Remote control functions (faucet): Sensor range, security time, delay in, delay out, on/off.
• Remote control functions (dispenser): Soap quantity selection, refill mode, temporary off, factory reset.
• Optional features: 24h hygiene flush (on request), extension cable and longer piping for remote installation.
• Power options: 12V transformer, 9V transformer, 9V alkaline battery or 6×1.5V D batteries.
• Water supply: Single inlet for cold or premixed water.
• Installation: Deck mounted.
