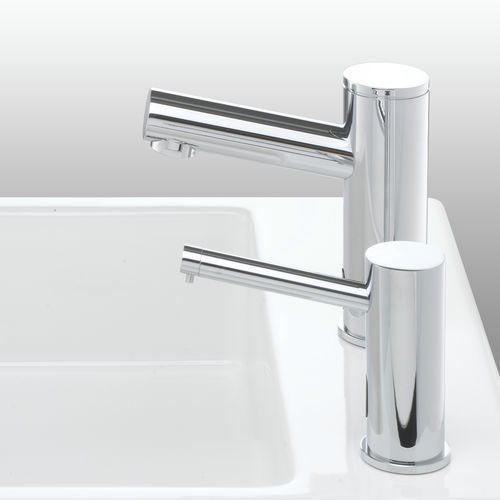

Mixer tap with soap dispenser ELITE DUO

bathroom sinkcountertopelectronic

Overview Touch-free lavatory faucet paired with a matching touch-free electronic soap dispenser for deck-mounted installations. The set is compatible with Elite touchless faucets in various spout heights and lengths. Includes mixer for water temperature adjustment and filter for single-inlet cold or premixed supply. Activated by an infrared sensor; chrome plated body with other finishes available. Latching solenoid valve is installed above deck to improve vandal resistance. Available in battery or transformer power versions; battery option includes a low battery indicator. Optional 24-hour hygiene flush on request. Remote control allows adjustment of sensor range, security time, delay in/out and power on/off.

Faucet features

• For cold or premixed water (single inlet). Filter included.
• Infrared sensor activation for touchless operation.
• Chrome plated body; alternative finishes available.
• Latching solenoid valve mounted above deck for increased vandal resistance.
• Deck-mounted installation; battery or 12V transformer power options.
• Battery version with low battery indicator.
• Remote-adjustable parameters: sensor range, security time, delay in, delay out, on/off.
• Optional 24-hour hygiene flush.

Soap dispenser features

• Infrared activation; automatic no-drip shut-off.
• Chrome plated body; other finishes available.
• Low battery indicator included.
• Includes 1 liter soap bottle and bottle support.
• Optional remote installation accessories: extension cable and longer piping.
• Remote functions: soap quantity selection, refill notification, temporary off, factory reset.

Application The touch-free faucet and soap dispenser activate when hands enter the sensor field and stop when removed, reducing contact points and cross-contamination. The Elite Soap and Water Duo supports hygiene in commercial restrooms and creates a coordinated automated washpoint.

Use Combines an elegant appearance with vandal-resistant components for long service life in demanding installations. Easy to install and maintain. Conserves water and soap while improving cleanliness. Suitable for offices, hotels, restaurants and all commercial restroom environments.

Technical specifications

• Power source: 12V transformer (battery option available)
• Water supply: cold or premixed water (single inlet)
• Installation: deck-mounted
• Part Number: 233052-1
• Includes: 1 liter soap bottle and bottle support
• Finish: chrome plated (other finishes available)
• Activation: infrared sensor
• Battery version: low battery indicator
• Remote control functions (faucet): sensor range, security time, delay in, delay out, on/off
• Remote control functions (soap dispenser): soap quantity selection, refill, temporary off, factory reset
