Public bench with integrated planter LEAN ORBITAL

contemporaryrecycled plastichardwood

Description

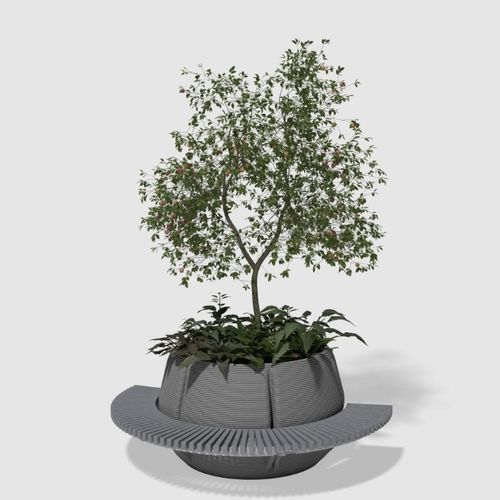

The Lean Orbital Planters are tree planters 3D-printed from recycled plastic recyclate with a distinctive pleated wall that provides structural strength and a recognisable visual expression. The product is offered as a planter-only unit or as a planter-with-integrated Lean benches configuration to create shaded social seating areas. For multi-stem trees, the Treetec™ Bottom Up system is recommended to optimise water and root development.

Materials

• Printed Recycled Composite — recycled: Yes
• Seating material options: Cumaru | FSC-100%
• Seating material options: Bamboo Brown | FSC-100%
• Seating material options: Cloudy Grey - Recycled — recycled: Yes (LDPE)

Cumaru | FSC-100% — technical details

• Material: FSC®-certified hardwood
• Status: Virgin
• Source: FSC® managed tropical forests
• Beam profile: Solid 7x7 cm; fine benches, diverse
• Max length: 300 cm
• Colour: Red brown
• Texture: Smooth without knots
• Years to grey: 2-3 years
• Density: 1150 kg/m³
• Lifespan: > 30 years
• Maintenance: None, possible sanding
• Recyclable: Yes
• Certificate: FSC®

Cloudy Grey - Recycled — technical details

• Material: Plastic recyclate
• Status: 100% recycled
• Source: 100% domestic plastic waste (LDPE)
• Beam size: Solid 7x7 cm
• Max. length: 120 cm
• Colour: Medium grey with clouds
• Texture: Rough and matt
• Years to grey: Colour stable
• Density: 1060 kg/m³
• Lifespan: 20-30 years
• Maintenance: None
• Recyclable: Yes

Treetec™ Tree care system
Years of research and urban projects have produced the Treetec™ system used in Streetlife planters. Treetec™ supports optimal tree development in confined planter environments by improving aeration, insulation and root anchoring.

Treetec™ Basic
Treetec™ Basic is a care kit including an oxygen circulation system, thermal insulation and a sub-soil root ball fixing system to ensure healthy growth in tree planters.

Treetec™ Bottom Up
With Treetec™ Bottom Up the water reservoir is placed at the bottom of the planter or tree isle. Capillary tubes improve water circulation, reducing watering and maintenance during the growing season. Over time, biodegradable capillary columns degrade and are absorbed into the substrate.

• A Installation of the columns against the root cloth.
• B First root growth in the column structure; initial reduction of moisture-retaining fibres in the column.
• C Further root growth in the columns; partial degradation of the cylindrical column.
• D Fully grown column structure replaces original capillary column; optimal water and oxygen retention by roots.

Additional information
Available in planter-only and planter-with-lean-bench versions. Product is configurable (materials and seating options). Typical configured example on page: Diameter 152 cm, Height 90 cm.

Technical specifications

• Product name: Lean Orbital Planters
• Denomination / model: Lean Orbital Planters
• Main material: Printed Recycled Composite (recycled plastic recyclate; LDPE for recycled variant)
• Seating materials available: Cumaru (FSC®), Cloudy Grey (recycled plastic)
• Seating — Cumaru max length: 300 cm; beam profile: Solid 7x7 cm
• Seating — Cloudy Grey max length: 120 cm; beam size: Solid 7x7 cm
• Recycled content: Printed Recycled Composite and Cloudy Grey are indicated as recycled
• Recommended tree system for multi-stem trees: Treetec™ Bottom Up
• Example dimensions (selectable): Diameter 152 cm; Height 90 cm
