combi beam / self-supporting / precast concrete / steel
NPS® BASIC

{{requestButtons}}

Characteristics

  • Type:

    combi, self-supporting

  • Material:

    precast concrete, steel

  • Cross section:

    rectangular

  • Applications:

    for flooring, framing

  • Other characteristics:

    large-span, welded

Description

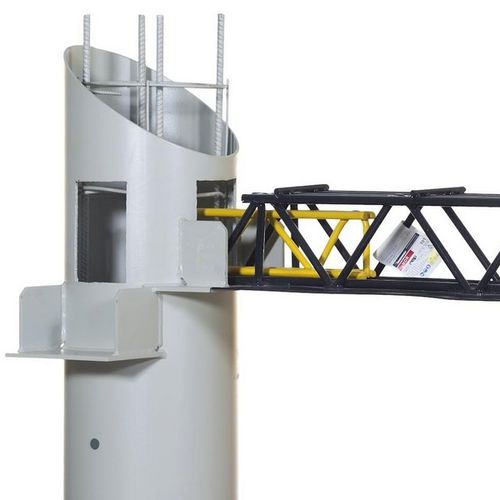

The self-bearing NPS® Basic beam with a mixed steel-concrete structure is recommended for structures with large spans, residential and industrial buildings, and for infrastructure.

The metal structure, made of structural steel pursuant to Standard UNI EN 10025-2 and with EN 1090-1 CE marking is composed of:

lower chord formed by a plate and possible additional rebar soldered to it;
upper chord formed by at least one pair of profiles;
connection web, simple or double, soldered to the upper and lower chords;
appropriately sized support terminals, which serve as anchoring devices, resist sliding actions.
