Combi beam NPS® REI 5
self-supportingprecast concretesteel

Combi beam - NPS® REI 5 - TECNOSTRUTTURE - NPS SYSTEM® - self-supporting / precast concrete / steel
Combi beam - NPS® REI 5 - TECNOSTRUTTURE - NPS SYSTEM® - self-supporting / precast concrete / steel
Combi beam - NPS® REI 5 - TECNOSTRUTTURE - NPS SYSTEM® - self-supporting / precast concrete / steel - image - 2
Combi beam - NPS® REI 5 - TECNOSTRUTTURE - NPS SYSTEM® - self-supporting / precast concrete / steel - image - 3
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Specifications
combi, self-supporting
Material
precast concrete, steel
Cross section
rectangular
Application
for flooring
Other characteristics
welded, with concrete footing

Description

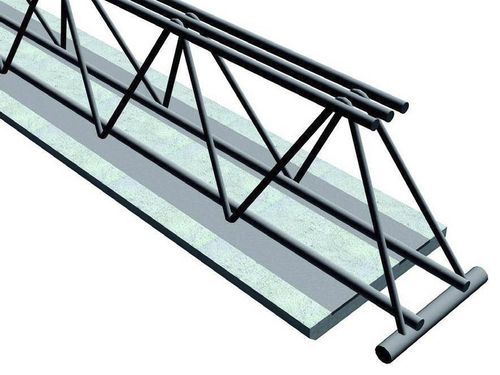

The self-bearing NPS® Rei 5 Beam with 5 cm concrete footing is patented for its optimal coupling with slab ceilings, and it allows for maximum containment of protrusions from beneath, preventing burdensome formwork and shoring. Fire-resistant according to Eurocode 2-2 requirements, NPS® Rei 5 Beam can also be created with a precast footing in fibre-reinforced concrete. The metal structure of structural steel UNI EN 10025-2 is made of one or more truss welded using metal active gas welding Process UNI EN ISO 4063-135.
