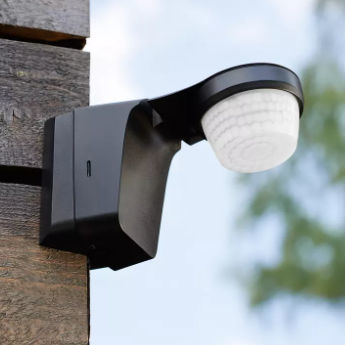

Motion detector THELUXA S360 WH

surface-mountedoutdoorcommercial

Passive infra-red motion detector For outdoor use For installation on walls and ceilings 360° detection angle Sensor head can be turned by ± 90° horizontally, by 45° downwards and by 90° upwards Adjustable brightness switching value and switch-off delay Sensitivity can be reduced to limit detection area Area limit via lens attachment Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs Zero-cross switching for relay-saving switching and high lamp loads Teach-in of current brightness value possible Pulse function Test function for checking detection area Installation on flush-mounted socket possible (60 mm) Single-handed plug-in installation Instant start-up possible via factory preset Controls are place protected Terminal for protective earth conductor Corner angle included in delivery Operating voltage - 230 V AC Frequency - 50 Hz Stand-by consumption - ~0.5 W Light measurement - Mixed light measurement Number of channels - 1 Colour - White (similar RAL 9010) Switching output - Light Installation type - Wall and ceiling installation Setting range brightness - 5 – 1000 lx Switching capacity - 10 A at 230 V AC, cos φ = 1, 6 A at 230 V AC, cos φ = 0.6, 3 AX at 230 V AC, cos φ = 0.3 Detection angle - 360° Installation height - 2 – 4 m Light switch-off delay - 1 s-20 min Incandescent/halogen lamp load - 2300 W Fluorescent lamp load (conventional) not corrected - 2300 VA Fluorescent lamp load (conventional) parallel-corrected - 1200 VA 120 µF Fluorescent lamp load (conventional) series-corrected - 2300 VA Fluorescent lamp load (electronic ballast) - 1000 W Energy saving lamps - 250 W Inrush current - max. 300 A / 200 µs LED lamp < 2 W - 50 W LED lamp 2-8 W - 500 W
