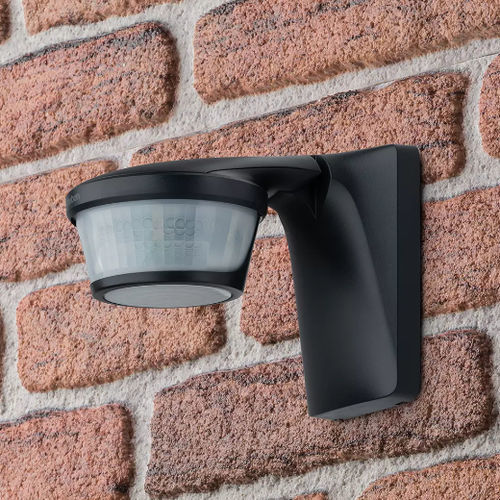

Motion detector (PIR)
Automatic lighting control based on presence and brightness
300° detection angle
For outdoor use
For installation on walls and ceilings
For larger, commercial outdoors properties such as offices, public buildings, hotels, schools, car parks and warehouses
Adjustable brightness switching value and switch-off delay
Sensitivity can be reduced to limit detection area
Area limit via lens attachment
Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
Teach-in of current brightness value possible
Pulse function
Test function for checking detection area
Installation on flush-mounted socket possible (60 mm)
Single-handed plug-in installation
Instant start-up possible via factory preset
Controls are place protected
Terminal for protective earth conductor
Spacer and corner angle included in delivery
Operating voltage - 230 V AC
Frequency - 50 Hz
Stand-by consumption - ~0.3 W
Light measurement - Mixed light measurement
Number of channels - 1
Colour - Black (similar RAL 9005)
Switching output - Light
Installation type - Wall and ceiling installation
Setting range brightness - 5 – 1000 lx
Switching capacity - 10 A at 230 V AC, cos φ = 1, 10 AX at 230 V AC, cos φ = 0.3
Detection angle - 300°
Installation height - 2 – 4 m
Light switch-off delay - 1 s-20 min
Incandescent/halogen lamp load - 2300 W
Fluorescent lamp load (conventional) parallel-corrected - 1300 VA 140 µF
Energy saving lamps - 300 W
Inrush current - max. 800 A / 200 µs
LED lamp 8 W - 600 W
Lamps - Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
