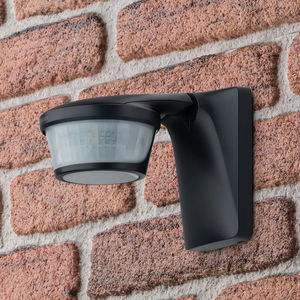

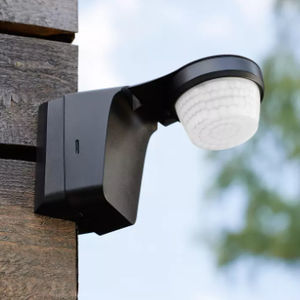

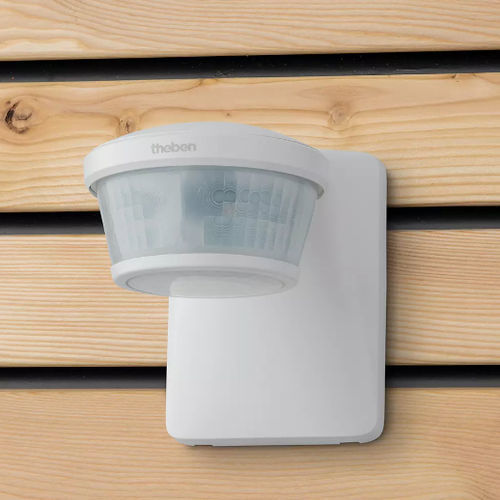

Motion detector THELUXA P300 WH

presencebrightnesswall-mounted

Motion detector (PIR) Automatic lighting control based on presence and brightness For integration into KNX building systems For outdoor use For installation on walls and ceilings Integrated temperature sensor For larger, commercial outdoors properties such as offices, public buildings, hotels, schools, car parks and warehouses Easy to program with KNX ETS software Adjustable brightness switching value and switch-off delay Sensitivity can be reduced Area limit via lens attachment Mixed light measurement Teach-in of current brightness value possible Pulse function Test function for checking detection area Installation on flush-mounted socket possible (60 mm) Single-handed plug-in installation Instant start-up possible via factory preset Controls are place protected Corner angle included Spacer and corner angle included Measuring range brightness - 1 – 3000 lx Detection angle - 300° Creep under protection - Ø 6 m Installation type - Wall and ceiling installation Light switch-off delay - 1 s - 60 min Lamps - fluorescent lamps, Incandescent/halogen lamps, Energy saving lamps, LEDs Light measurement - Mixed light measurement Ambient temperature - -25°C ... 45°C Colour - White Protection class - III Type of protection - IP 55
