Passive infra-red motion detector
For outdoor use
Additional creep under protection
Sensor head can be turned by ± 90° horizontally and by 30° downwards
Adjustable brightness switching value and switch-off delay
Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
Zero-cross switching for relay-saving switching and high lamp loads
Teach-in of current brightness value possible
Pulse function
Test function for checking detection area
Installation on flush-mounted socket possible (60 mm)

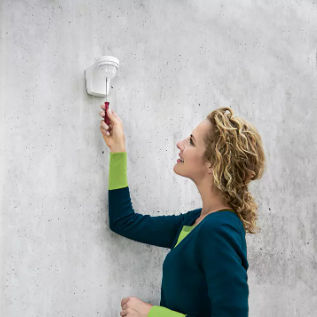

Single-handed plug-in installation
Instant start-up possible via factory preset
Controls are place protected
Terminal for protective earth conductor
Operating voltage - 230 V AC
Frequency - 50 Hz
Stand-by consumption - ~0.9 W
Light measurement - Mixed light measurement
Number of channels - 1
Colour - Black (similar RAL 9005)
Switching output - Light
Installation type - Wall installation
Setting range brightness - 5 – 1000 lx
Switching capacity - 10 A at 230 V AC, cos φ = 1, 6 A at 230 V AC, cos φ = 0.6, 3 AX at 230 V AC, cos φ = 0.3
Detection angle - 150°
Installation height - 2 – 4 m
Light switch-off delay - 1 s-20 min
Incandescent/halogen lamp load - 2300 W
Fluorescent lamp load (conventional) not corrected - 2300 VA
Fluorescent lamp load (conventional) parallel-corrected - 1200 VA 120 µF
Fluorescent lamp load (conventional) series-corrected - 2300 VA
Fluorescent lamp load (electronic ballast) - 1000 W
Energy saving lamps - 250 W
Inrush current - max. 300 A / 200 µs
LED lamp 8 W - 500 W
Lamps - Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Remote controlled
