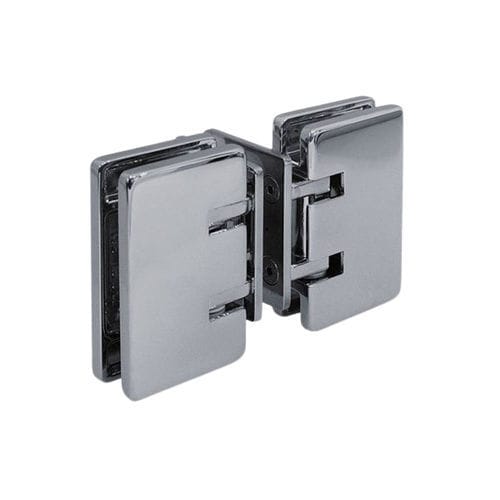

Family: Hinges
Category: Adjustable alignment hinge
Finishes: Bright Chrome - Satin Nickel - Matt Black Chrome
GENERAL CHARACTERISTICS
Hinge with mechanical retention and adjustment of the alignment of the door in its closed position.
Hinges made by stamping in brass
Fully concealed hardware
Turning axles and screws made of stainless steel
Glass clamping gaskets made of PE
With retention at 0º and ± 90º
0 ° point regulation always guaranteed
Design that reduces the franchises between wall-glass or glass-glass
Trim caps - including wall base
Tested and guaranteed for Grade 5 anti-corrosion resistance.
Tested and guaranteed for 200,000 cycles.
Impeccable, fast, optimal and easy installation
Maximum load per unit: 35 kg
For 8 and 10 m / m glass
