Door hinge BBD
stainless steelbrassnickel

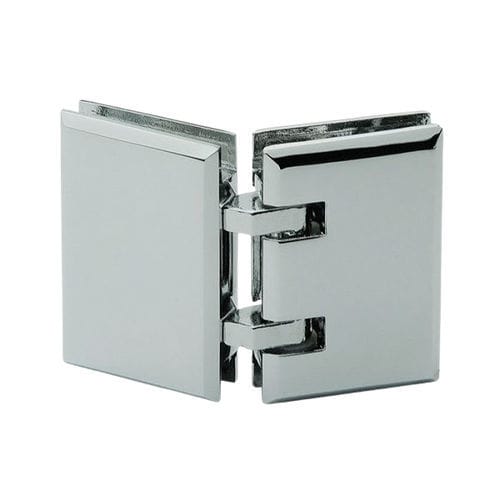

Door hinge - BBD - Trivel - stainless steel / brass / nickel
Door hinge - BBD - Trivel - stainless steel / brass / nickel
Door hinge - BBD - Trivel - stainless steel / brass / nickel - image - 2
Door hinge - BBD - Trivel - stainless steel / brass / nickel - image - 3
Add to favorites
Compare this product
Go to the Trivel website for more information

Characteristics

Product applications
door
Material
stainless steel, brass, nickel, chrome, glass, satin
Market
home, commercial
Finish
black, silver finish, polished chrome
Style
contemporary
Opening angle
90°
Other characteristics
custom-made
Height

1,000 mm
(39.4 in)

Thickness

Max.: 10 mm
(0.4 in)

Min.: 8 mm
(0.3 in)

Maximum load

35 kg
(77.2 lb)

Description

Hinge with mechanical retention Hinges manufactured by stamping in brass alloy Pivot pins made of stainless steel AISI 303 High-quality pivot bushings with built-in maintenance-free lubricants Screws made of stainless steel A2 Retention springs in stainless steel AISI 302 Glass compression gaskets made of PE Retention at 0º and ±90º Certified according to UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles Certified according to UNE-EN 1670:2007 and UNE-EN 1670:2007/AC:2008, Grade 5, maximum corrosion resistance Finishes: Polished chrome – Satin nickel – Black lacquer OPTIONS ON REQUEST Electrolytic finishes RAL colours Special wall bases
