Door hinge 368S
stainless steelbrassnickel

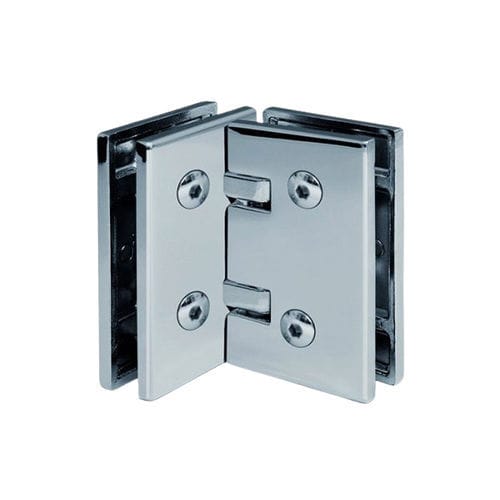

Door hinge - 368S - Trivel - stainless steel / brass / nickel
Door hinge - 368S - Trivel - stainless steel / brass / nickel
Door hinge - 368S - Trivel - stainless steel / brass / nickel - image - 2
Door hinge - 368S - Trivel - stainless steel / brass / nickel - image - 3
Add to favorites
Compare this product
Go to the Trivel website for more information

Characteristics

Product applications
door
Material
brass, stainless steel, nickel, glass, satin
Market
home, commercial
Finish
black, polished chrome
Style
contemporary
Opening angle
90°
Other characteristics
custom-made
Thickness

8 mm, 10 mm, 12 mm
(0.3 in, 0.4 in, 0.5 in)

Maximum load

35 kg, 40 kg
(77.2 lb, 88.2 lb)

Description

Double 90° Hinge with mechanical retention Hinges made by stamping in brass alloy Pivot pins made of stainless steel AISI 303 High-quality pivot bushings with built-in maintenance-free lubricants Screws made of stainless steel A2 Retention springs made of stainless steel AISI 302 Glass compression gaskets made of PE With retention at 0º and ±90º Certified under UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles Certified under UNE-EN 1670:2007 and UNE-EN 1670:2007/AC:2008, Grade 5, maximum corrosion resistance Finishes: Polished chrome – Satin nickel – Black lacquer Door size: 1000 x 2500 mm Door size: 1000 x 2500 mm Electrolytic finishes RAL colours Special wall bases
