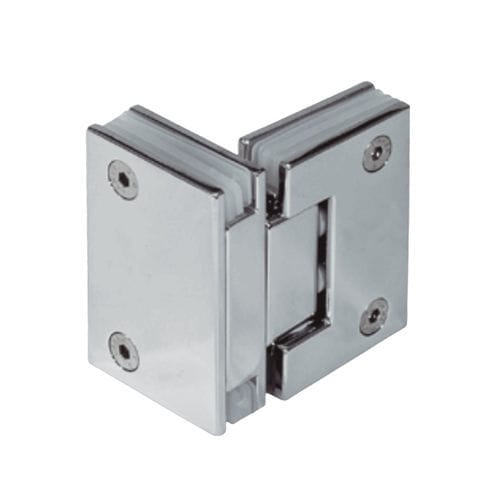

Glass door hinge 365V12stainless steelchrome-plated brassglass
Add to favorites
Compare this product
Characteristics
- Product applications
- glass door
- Material
- chrome-plated brass, stainless steel, polished stainless steel, glass
- Technical characteristics
- corner
- Market
- home, for industrial use, building, shop
- Finish
- black
- Style
- contemporary
- Opening angle
- 90°
- Other characteristics
- custom-made
- Height
1,000 mm
(39.4 in)- Thickness
12 mm
(0.5 in)- Maximum load
40 kg
(88.2 lb)
Description
Double 90°
Hinge with mechanical retention
Hinges manufactured by investment casting in stainless steel AISI 316
Pivot pins in stainless steel AISI 303
High-quality pivot bushings with built-in maintenance-free lubricants
Screws in stainless steel A2
Retention springs in stainless steel AISI 302
Glass compression gaskets made of PE
Retention at 0º and ±90º
Certified under UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles
Certified under UNE-EN 1670:2007 and UNE-EN 1670:2007/AC:2008, Grade 5, maximum corrosion resistance
Finishes: Polished stainless steel – Satin stainless steel – Black lacquer
Electrolytic finishes
RAL colours
Special wall bases
