Door hinge BG
stainless steelglasspolished stainless steel

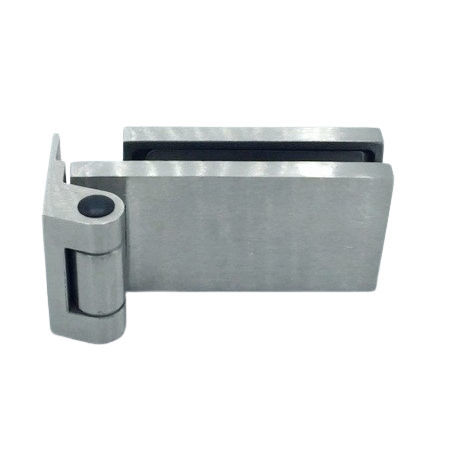

Door hinge - BG - Trivel - stainless steel / glass / polished stainless steel
Door hinge - BG - Trivel - stainless steel / glass / polished stainless steel
Door hinge - BG - Trivel - stainless steel / glass / polished stainless steel - image - 2
Door hinge - BG - Trivel - stainless steel / glass / polished stainless steel - image - 3
Add to favorites
Compare this product
Go to the Trivel website for more information

Characteristics

Product applications
door
Material
stainless steel, polished stainless steel, glass
Technical characteristics
concealed
Market
home, commercial
Finish
black
Style
contemporary
Opening angle
90°
Other characteristics
custom-made
Height

1,000 mm
(39.4 in)

Thickness

Max.: 10 mm
(0.4 in)

Min.: 8 mm
(0.3 in)

Maximum load

35 kg
(77.2 lb)

Description

Hinges manufactured by investment casting in stainless steel AISI 316 Decorative cover plates Concealed screws Pivot pins and screws made of stainless steel AISI 303 High-quality pivot bushings with built-in maintenance-free lubricants Glass compression gaskets made of PE Certified under UNE-EN 1935:2002/AC:2004, Grade 7 / 200,000 cycles Certified under UNE-EN 1670:2007 and UNE-EN 1670:2007/AC:2008, Grade 5, maximum corrosion resistance Finishes: Polished stainless steel – Satin stainless steel – Black lacquer Electrolytic finishes RAL colours
