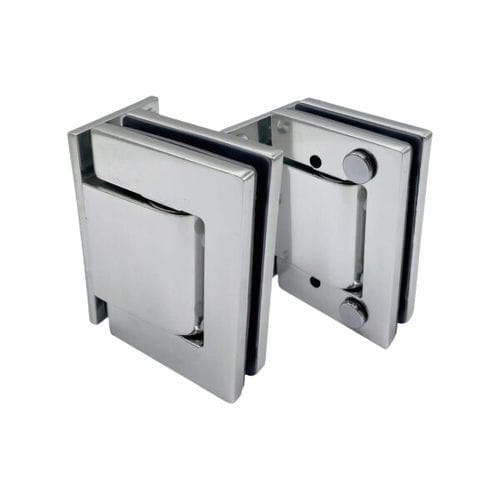

Door hinge H2202A

stainless steelsatinglass

Offset fixing base Hinges specifically designed for humid and saline environments, saunas, spas, etc. Hydraulic hinge with adjustable closing speed, with hold-open at 0º and ±90º, and self-closing from ±80º to 0º. Adjustable alignment of the closing position Thermo-constant hydraulic fluid, flash point 160°C, freezing point -40°C. Made from aluminum alloy through a stamping process. Pivot pins made of stainless steel AISI 420. Stainless steel A2 screws. Glass clamping gaskets made of PE material. Certified according to UNE-EN 1154:2003/AC:2006, Grade 8 (500,000 cycles). Certified according to UNE-EN 1670:2007/AC:2008, Grade 5 – maximum corrosion resistance. Finishes: Matte silver anodized – Satin anodized stainless steel – Bright anodized stainless steel – Matte black anodized Door size: 1000 x 3000 mm Other anodized finishes RAL colors Glass thickness up to 21.52 mm Without hold-open at ±90
