Door latch PMF
steelsatinhigh-gloss

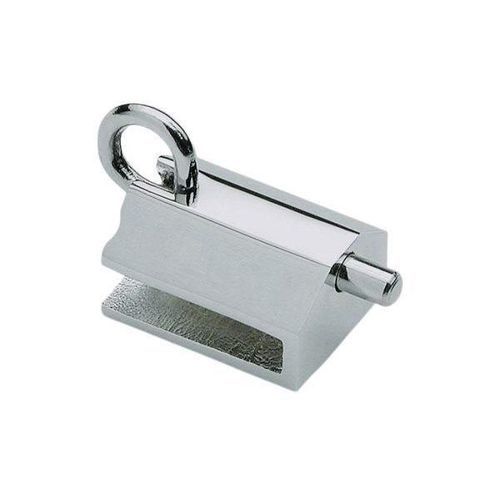

Door latch - PMF - Trivel - steel / satin / high-gloss
Door latch - PMF - Trivel - steel / satin / high-gloss
Add to favorites
Compare this product
Go to the Trivel website for more information

Characteristics

Options
for door, steel
Finish
satin, high-gloss

Description

Product
  • T / TV12 – Glazing hardware and fittings (series for assembly and fixation of glass panes)


Available variants / references
  • PMF — Pressure latch
  • PM / PMV12 — Pressure latch
  • CPM / CPMV12 — Latch + striker plate (pressure)
  • CPMF — Latch + striker plate (variant)
  • GBPC — Bottom guide for sliding door
  • ALP — Lateral door support
  • A1A2 / A1A2S — 90º corner fixing pieces (incl. floor/ceiling)
  • S1LAA, S1LAAS, S1LAC, S1LBD, S1LBC, S1LBBE, S1LEE — Various fixing parts for a glass pane (configurations: without internal anchoring, floor/ceiling, anchoring holes on outer flanges, top-mounted, etc.)
  • PV6, PV8, PV10 — Display hinges for glass 6 mm / 8 mm / 10 mm
  • S1LT, SLT, SL90ºT — Fixing parts for roofs or 90º roof fixation
  • SR — Sign support
  • TP1, TP2, TP3 — Stops (single-pressure, double, carpentry)
  • CGPV/TPV — Pivot point / showcase corner


GENERAL CHARACTERISTICS
  • Glass clamping plates manufactured from AISI 304 stainless steel sheet, 4 mm thickness
  • Fasteners in A2 stainless steel
  • Glass clamping seals in cork-rubber material
  • Finishes: Bright stainless — Satin stainless


RECOMMENDED DOOR DIMENSIONS
  • Glass thickness 10 mm (T)
  • Glass thickness 12 mm (TV12)
  • Recommended door dimensions: 1100 x 2500 mm
  • Load: 70 kg per unit


OPTIONS ON REQUEST
  • Electrolytic finishes
  • RAL colours
  • VG parts with special angles
  • Custom parts according to project requirements


Technical characteristics / specifications
  • Series: T / TV12 (hardware and fittings for glass assembly)
  • Materials: AISI 304 stainless steel (plates), A2 stainless steel fasteners, cork-rubber seals
  • Stainless plate thickness: 4 mm
  • Compatible glass: 10 mm (T) and 12 mm (TV12)
  • Maximum recommended load: 70 kg per piece (depending on reference)
  • Available finishes: bright stainless, satin stainless; other finishes (electrolytic, RAL colours) on request
  • Multiple references available: hinges, latches, guides, supports, stops, pivot points, roof/angle fixings, etc., adapted to different glazing and anchoring configurations
