Stainless steel fastening system TP3
for joineryinterior

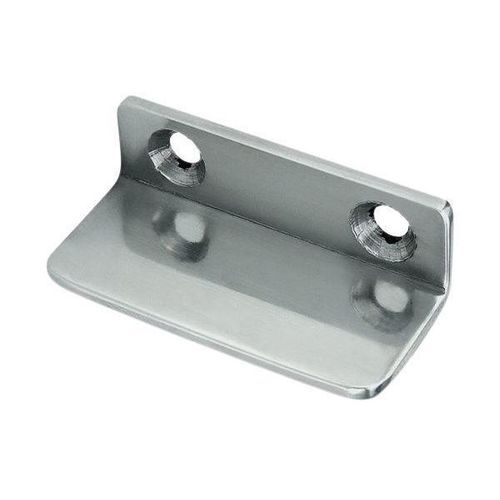

Stainless steel fastening system - TP3 - Trivel - for joinery / interior
Stainless steel fastening system - TP3 - Trivel - for joinery / interior
Add to favorites
Compare this product
Go to the Trivel website for more information

Characteristics

Material
stainless steel
Applications
for joinery
Other characteristics
interior

Description

Product T / TV12 – Fittings and accessories – TP3 (Carpentry stop)

General characteristics
  • Glass clamping plates manufactured from 4 mm thick AISI 304 stainless-steel sheet
  • Stainless steel fasteners (A2)
  • Glass clamping seals made of cork-rubber material
  • Available finishes: Polished stainless steel, Satin stainless steel


Recommended door dimensions
  • Compatible glass thickness: 10 mm (T) and 12 mm (T V12)
  • Recommended door size: 1100 x 2500 mm
  • Maximum load per unit: 70 kg


Options available on request
  • Electrolytic finishes
  • RAL colours
  • VG pieces with special angles
  • Custom special pieces on request


Variants available (main references)
  • TP3 — Carpentry stop (shown variant)
  • S1LAA — Single-glass fixing without internal anchorage
  • S1LAAS — Single-glass fixing floor/ceiling
  • S1LAC — Single-glass fixing
  • S1LBBE — Single-glass fixing with anchorage holes on external fins
  • S1LBC — Single-glass fixing
  • S1LBD — Single-glass fixing at corners
  • S1LEE — Single-glass fixing with anchorage holes on external fins
  • A1A2 / A1A2S — 90° angle fixing / 90° floor/ceiling
  • ALP — Lateral door support
  • GBPC — Bottom guide for sliding door
  • CGPV / TPV — Pivot point / showcase corner
  • CPM / CPMV12, CPMF — Latch + pressure keeps
  • PM / PMV12, PMF — Pressure latch
  • PV6, PV8, PV10 — Showcase hinge for 6 / 8 / 10 mm glass
  • S1LT, SLT, SL90ºT — Roof glass fixings and two-roof glass fixings
  • SR — Sign support
  • TP1, TP2 — Single / double pressure stop


Technical information and machining
  • Brand: Trivel (Trivel Galtés)
  • Material: AISI 304 stainless steel (clamping plates, 4 mm thick)
  • Fasteners: Stainless steel screws (A2)
  • Seals: Cork-rubber glass clamping seals
  • Available finishes: Polished stainless steel, Satin stainless steel (special finishes on request)
  • Compatible glass thickness: 10 mm and 12 mm
  • Recommended door dimensions: 1100 x 2500 mm
  • Maximum load per unit: 70 kg
  • Customisation: Electrolytic finishes, RAL colours, VG pieces with special angles, bespoke pieces on request
  • Technical drawings and glass machining templates are provided for each reference
