Furniture hinge PV8
doorstainless steelcontemporary

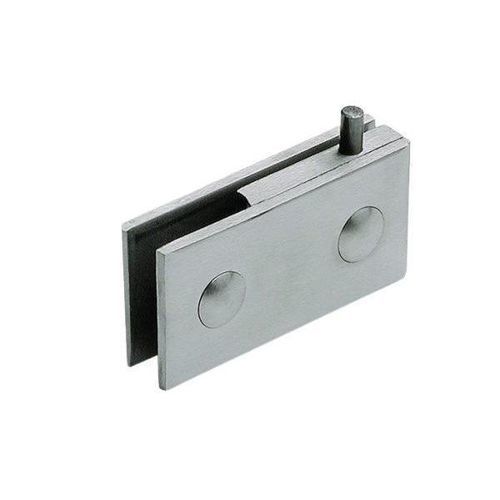

Furniture hinge - PV8 - Trivel - door / stainless steel / contemporary
Furniture hinge - PV8 - Trivel - door / stainless steel / contemporary
Add to favorites
Compare this product
Go to the Trivel website for more information

Characteristics

Product applications
door, for furniture
Material
stainless steel
Style
contemporary
Thickness

8 mm
(0.3 in)

Maximum load

70 kg
(154.3 lb)

Description

Product
  • Series: T / TV12 — fittings and accessories for glazed systems and doors. Displayed model/variant on page: PV8 (Showcase hinge glass 8mm).


Variations / Available references
  • S1LAA - Single glass union without interior anchorage
  • S1LAAS - Single glass union floor/ceiling
  • S1LAC - Single glass union
  • S1LBBE - Single glass union anchorage holes on outer fins
  • S1LBC - Single glass union
  • S1LBD - Single glass union vertices
  • S1LEE - Single glass union anchorage holes on outer fins
  • A1A2 - 90° angle union
  • A1A2S - 90° angle union floor/ceiling
  • ALP - Door side support
  • GBPC - Lower guide for sliding door
  • CGPV/TPV - Pivot point / showcase wedge
  • CPM / CPMV12 - Latch + pressure strike plate
  • CPMF - Latch + pressure strike plate (variant)
  • PM / PMV12 - Pressure latch
  • PMF - Pressure latch (variant)
  • PV6 - Showcase hinge glass 6 mm
  • PV8 - Showcase hinge glass 8 mm
  • PV10 - Showcase hinge glass 10 mm
  • S1LT - Glass roof union
  • SLT - Two glass roof union
  • SR - Signage support
  • TP1 - Single pressure stop
  • TP2 - Double pressure stop
  • TP3 - Carpentry stop
  • SL90°T - Glass roof clamp 90°


General characteristics
  • Glass clamping plates: stainless-steel sheet AISI 304, 4 mm thickness
  • Screws: stainless steel A2
  • Glass clamping seals: cork-rubber material
  • Finishes available: Polished stainless steel, Satin stainless steel


Recommended door dimensions
  • Compatible glass thickness: 10 mm (T) and 12 mm (TV12)
  • Typical door size: 1100 x 2500 mm (approx.)
  • Load capacity: 70 kg per unit


Options available on request
  • Electrolytic finishes
  • RAL colours (painted finishes)
  • VG pieces with special angles
  • Custom special pieces manufactured to project requirements


Technical specifications
  • Material: AISI 304 stainless steel (clamping plates); screws A2 stainless steel
  • Plate thickness: 4 mm (clamping plates)
  • Sealing: Cork-rubber clamping seals
  • Compatible glass thicknesses: 10 mm and 12 mm
  • Recommended maximum door dimensions: ~1100 x 2500 mm
  • Load per unit: 70 kg (typical)
  • Available finishes: Polished and satin stainless steel; other finishes on request (electrolytic, RAL)
  • Custom manufacturing: VG pieces with special angles and other special parts on request
