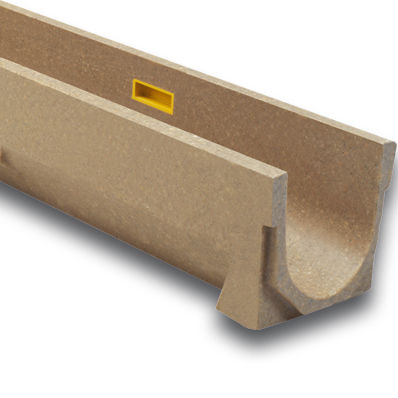

Drainage channel with grating U100
slopedpolymer concretegalvanised steel grate

Drainage channel with grating - U100 - ULMA - ARCHITECTURAL SOLUTIONS - sloped / polymer concrete / galvanised steel grate
Drainage channel with grating - U100 - ULMA - ARCHITECTURAL SOLUTIONS - sloped / polymer concrete / galvanised steel grate
Drainage channel with grating - U100 - ULMA - ARCHITECTURAL SOLUTIONS - sloped / polymer concrete / galvanised steel grate - image - 2
Drainage channel with grating - U100 - ULMA - ARCHITECTURAL SOLUTIONS - sloped / polymer concrete / galvanised steel grate - image - 3
Drainage channel with grating - U100 - ULMA - ARCHITECTURAL SOLUTIONS - sloped / polymer concrete / galvanised steel grate - image - 4
Drainage channel with grating - U100 - ULMA - ARCHITECTURAL SOLUTIONS - sloped / polymer concrete / galvanised steel grate - image - 5
Drainage channel with grating - U100 - ULMA - ARCHITECTURAL SOLUTIONS - sloped / polymer concrete / galvanised steel grate - image - 6
Add to favorites
Compare this product
Go to the ULMA - ARCHITECTURAL SOLUTIONS website for more information

Characteristics

Configuration
with grating, sloped
Material
polymer concrete
*grid material
galvanised steel grate, stainless steel grate
Applications
for parking lot, for sports fields
Color availability
beige
Level of traffic
light traffic, for pedestrian area
Other characteristics
rainwater
Length

1,000 mm
(39 in)

Width

130 mm
(5 in)

Depth

Max.: 280 mm
(11.02 in)

Min.: 130 mm
(5.12 in)

Description

Polymer concrete Linear Drainage Channel ULMA, type U100: External width 130mm; Internal width 100mm; Available with overall heights between 130mm and 280mm, 0,5% presloped channels to collect rain water in 1 metre long units. Locking system consists of locking bar CS100 and screws.
