Drainage channel with grating U250
slotpolymer concretegalvanized steel

drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
Add to favorites
Compare this product


Characteristics

Configuration
with grating, slot
Material
polymer concrete
*grid material
galvanized steel, cast iron
Applications
for parking lots, for sports fields
Color availability
beige
Level of traffic
light traffic, for pedestrian area
Other characteristics
rainwater
Length

1,000 mm
(39 in)

Width

310 mm
(12 in)

Depth

270 mm, 320 mm, 370 mm
(10.63 in, 12.6 in, 14.57 in)

Description

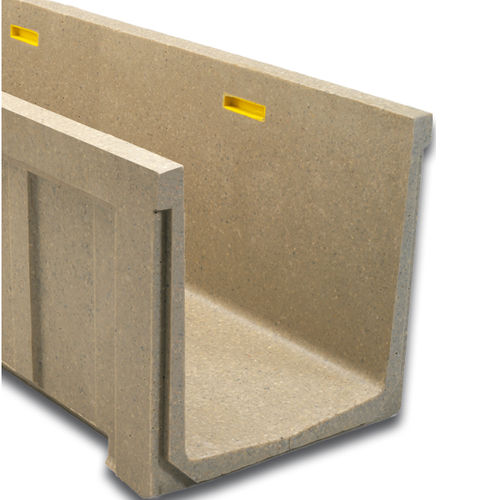

Polymer concrete Linear Drainage Channel ULMA, type U250: External width 310mm; Internal width 250mm; Available with overall heights between 270 and 370mm, to collect rain water in 1 metre long units. Locking system consists of locking bar CS250 and screws.
