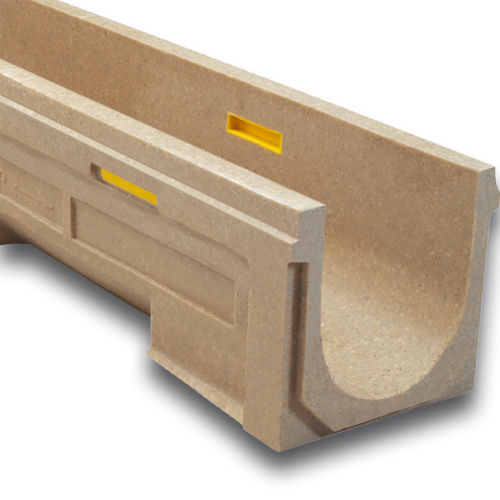

Drainage channel with grating U200
slotpolymer concretegalvanised steel grate

Drainage channel with grating - U200 - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / galvanised steel grate
Drainage channel with grating - U200 - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / galvanised steel grate
Drainage channel with grating - U200 - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / galvanised steel grate - image - 2
Drainage channel with grating - U200 - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / galvanised steel grate - image - 3
Drainage channel with grating - U200 - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / galvanised steel grate - image - 4
Add to favorites
Compare this product
Go to the ULMA - ARCHITECTURAL SOLUTIONS website for more information

Characteristics

Configuration
with grating, slot
Material
polymer concrete
*grid material
galvanised steel grate, cast iron grate
Applications
for parking lot, for sports fields
Color availability
beige
Level of traffic
light traffic, for pedestrian area
Other characteristics
rainwater
Length

1,000 mm
(39 in)

Width

260 mm
(10 in)

Depth

240 mm, 290 mm, 340 mm
(9.45 in, 11.42 in, 13.39 in)

Description

Polymer concrete Linear Drainage Channel ULMA, type U200: External width 260mm; Internal width 200mm; Available with overall heights between 240mm and 340mm. Suitable for cascaded type slope to collect rain water in 1 metre long units. Locking system consists of locking bar CS200 and screws.
