Drainage channel with grating U150K
slotpolymer concretegalvanized steel

drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
Add to favorites
Compare this product


Characteristics

Configuration
with grating, slot
Material
polymer concrete
*grid material
galvanized steel, stainless steel, cast iron
Applications
for parking lots, for sports fields
Color availability
beige
Level of traffic
light traffic, for pedestrian area
Other characteristics
rainwater
Length

1,000 mm
(39 in)

Width

204 mm
(8 in)

Depth

220 mm, 270 mm, 320 mm
(8.66 in, 10.63 in, 12.6 in)

Description

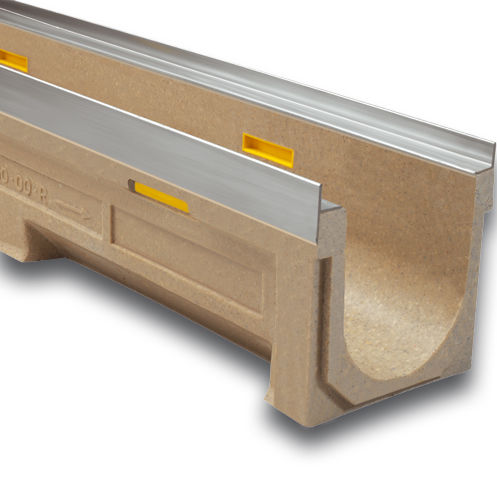

Polymer concrete Linear Drainage Channel ULMA, type U150K: External width 204mm; Internal width 150mm; Suitable for cascade type slope and available with overall heights between 220mm and 320mm to collect rain water in 1 metre long units; Integrated galvanized steel edges for lateral protection. Locking system consists of CS150 locking bar and screws. * Also available with stainless edge protection.
