Drainage channel with grating U200K
slotslopedpolymer concrete

drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
Add to favorites
Compare this product


Characteristics

Configuration
with grating, slot, sloped
Material
polymer concrete
*grid material
galvanized steel, cast iron
Applications
for parking lots, for sports fields
Color availability
beige
Level of traffic
light traffic, for pedestrian area
Other characteristics
rainwater
Length

1,000 mm
(39 in)

Width

260 mm
(10 in)

Depth

263 mm, 313 mm, 363 mm
(10.35 in, 12.32 in, 14.29 in)

Description

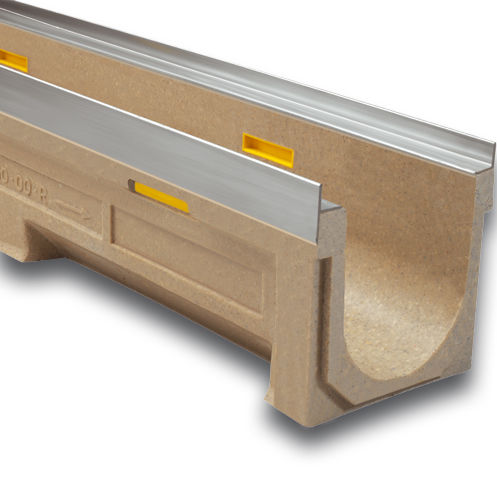

Polymer concrete Linear Drainage Channel ULMA, type U200K: External width 260mm; Internal width 200mm; Suitable for cascade type slope and available with overall heights between 263mm and 363mm to collect rain water in 1 metre long units; Integrated galvanized steel edges for lateral protection. Locking system consists of CS200 locking bar and screws.
