Cover plywood panel WISA®-HEXA

constructionfor walkwaysbuilding

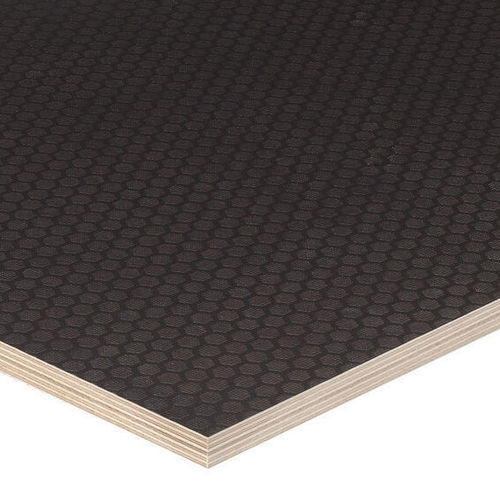

Overview WISA®-Hexa is a slip-resistant and decorative film-coated birch plywood panel for flooring in transport and building applications. The panel is manufactured from birch veneers glued together in cross-banded construction. The product is coated with a brown film with an imprinted hexagonal friction pattern. The panel is suitable for the transport industry (for example delivery vans), warehouse floors, stage platforms, and scaffolding loading platforms where slip resistance and a decorative appearance are required.

End uses

• Vehicle flooring
• Construction
• Panel trading

Properties

• Exterior glued
• Forest certified
• Friction surface (film-coated)
• Made in EU

Product information
Available thicknesses: 9, 12, 15, 18, 21, 24, 27, 30

Standard size range:
1220/1250 x 2440/2500/3000/3050/3660
1525 x 2500/3050/3660
1000/2000 x 2000/2500/3000

Maximum size:
1525 x 3660

DoP document numbers: UPM007CPR

Certificates: FSC™, FSC™ CW, PEFC CoC, PEFC

Characteristics / technical specifications

• Material: Birch veneers in cross-banded construction
• Surface: Brown film-coated surface with imprinted hexagonal friction pattern
• Main function: Slip-resistant decorative flooring panel
• Typical end uses: Vehicle flooring, warehouse floors, stage platforms, scaffolding loading platforms
• Available thicknesses (mm): 9, 12, 15, 18, 21, 24, 27, 30
• Standard sizes (mm): 1220/1250 x 2440/2500/3000/3050/3660; 1525 x 2500/3050/3660; 1000/2000 x 2000/2500/3000
• Maximum size (mm): 1525 x 3660
• DoP reference: UPM007CPR
• Certifications: FSC™, FSC™ CW, PEFC CoC, PEFC
