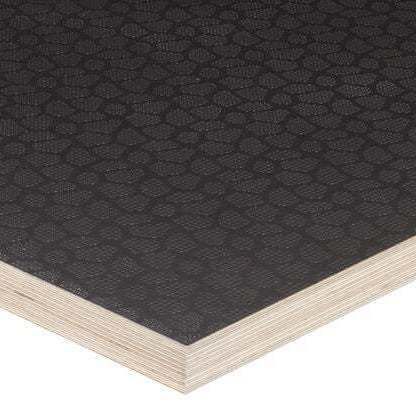

Cover plywood panel WISA®-TRANS MK2

for flooringfor floornon-slip

Overview
WISA®-Trans Mk2 is a slip-resistant birch plywood panel designed for demanding flooring applications in transport and construction. The panel is manufactured from birch veneers bonded in special-oriented or cross-banded constructions and finished with a multi-layer wear-resistant, friction surface. It is intended for truck, trailer and railway wagon floors as well as heavy-duty building floors such as warehouse and loading platform decks.

End uses

• Vehicle flooring

Properties

• Exterior glued
• Machining available
• Friction surface (slip-resistant, wear resistant)
• Made in EU
• Load bearing
• Cut-to-size available

Product information
Available thicknesses
18, 21, 24, 27, 30, 31, 35
Standard size range
1220/1250 x 2440/2500
1525 x 2500/3000/3050/3660
Maximum size
1525 x 3660
DoP document numbers
UPM007CPR, UPM008CPR
Certificates
FSC™, FSC™ CW, PEFC CoC, PEFC
Detailed technical values available in product related DoP (Declaration of Performance).

Technical specifications

• Brand/product family: WISA®-Trans Mk2
• Material: Birch veneers (plywood)
• Construction: Special-oriented or cross-banded
• Surface: Multi-layer laminate with slip-resistant, wear-resistant coating
• Applications: Truck, trailer and railway wagon flooring; warehouse floors; loading platforms
• Available thicknesses (mm): 18, 21, 24, 27, 30, 31, 35
• Standard sizes (mm): 1220/1250 x 2440/2500; 1525 x 2500/3000/3050/3660
• Maximum dimension (mm): 1525 x 3660
• DoP numbers: UPM007CPR, UPM008CPR
• Certificates: FSC™, FSC™ CW, PEFC CoC, PEFC
• Options: Machining and cut-to-size available
• Origin: Made in EU
