Cover plywood panel WISA®-TRUCK PLUS

constructionfor flooringfor floor

Overview

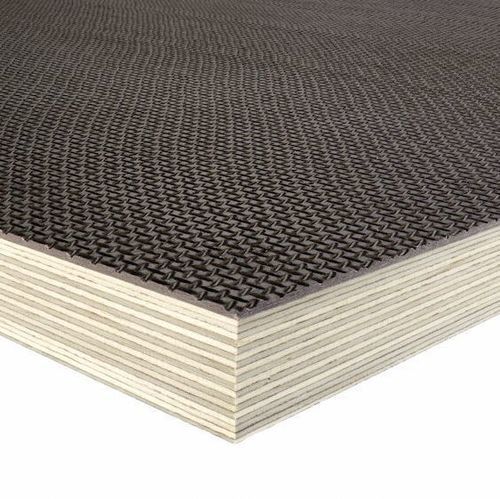

WISA®-Truck Plus is a birch plywood panel coated with a thick multilayer laminate designed for truck and trailer flooring and other flooring applications subject to extremely heavy use. The panel is built from birch veneers glued in cross-bonded or special-oriented construction. The surface provides a wire-mesh pattern that improves friction and wear resistance while giving lower noise in operation compared with metal alternatives.

End uses

• Vehicle flooring (truck and trailer floors)
• Loading floors
• Warehouse flooring

Properties

• Exterior glued
• Designed for vehicle flooring
• Heavy-duty, load-bearing
• Wear-resistant friction surface (wire-mesh pattern)
• Lightweight relative to metal alternatives

Product information
Available thicknesses (mm): 21, 24, 27, 28, 30, 31, 35
Standard size range (mm): 1220 x 2440 / 2500
Maximum size (mm): 1220 x 2500
DoP document numbers: UPM007CPR, UPM008CPR
Certificates: FSC™, FSC™ CW, PEFC CoC, PEFC

Notes
For all detailed technical values (strength, mechanical performance, formaldehyde class, etc.), consult the product-related DoP (Declaration of Performance).

Technical characteristics / specifications

• Denomination: WISA®-Truck Plus
• Panel construction: birch veneers glued in cross-bonded or special-oriented construction
• Surface coating: thick, multilayer laminate with wire-mesh pattern (wear-resistant, friction surface)
• Intended application: truck and trailer flooring, loading floors, warehouse floors subject to extremely heavy use
• Mechanical attributes: load-bearing, heavy-duty
• Glue type: exterior glued
• Available thicknesses (mm): 21, 24, 27, 28, 30, 31, 35
• Standard size range (mm): 1220 x 2440 / 2500
• Maximum size (mm): 1220 x 2500
• DoP document numbers: UPM007CPR, UPM008CPR
• Certificates: FSC™, FSC™ CW, PEFC CoC, PEFC
