Construction plywood panel WISA®

for joinerybuildingfor roof

Short description

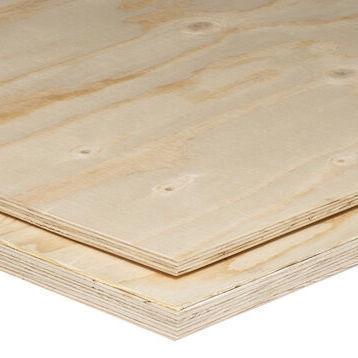

WISA®-Spruce is a light, rigid plywood panel manufactured from certified Nordic spruce veneers. Veneers are cross-banded and exterior-glued, producing a panel suitable for structural and load-bearing applications. Panels can be machined, painted or CNC-processed without losing the characteristic mechanical performance.

End uses

• Roofing and roof sheathing
• Flooring, including vehicle flooring
• Wall sheathing and structural panels
• Packaging and transport crates
• Offsite/modular construction

Properties

• Exterior glued (suitable for exterior applications)
• Manufactured from certified Nordic spruce
• Cross-banded veneer construction
• Low-emission certified
• Forest certification (FSC™, PEFC)
• Biobond technology
• Wide thickness range (5–50 mm)
• Light weight and rigid
• CNC machinable and paintable
• Made in EU

Product information
Available thicknesses: 5, 6.5, 9, 12, 15, 18, 19, 21, 22, 24, 27, 30, 40, 50 mm (multiple nominal thicknesses available)
Standard size range: 2400/2440/2500 x 1200/1220/1250 mm; 1200/1220/1250 x 2400/2440/2500/3000 mm; 1500/1525 x 2440/2500/3050 mm
Maximum panel size: 1525 x 3660 mm
DoP document numbers: UPM001CPR, UPM021CPR, UPM002CPR
Certificates: FSC™, FSC™ CW, PEFC CoC, PEFC

Technical specifications

• Raw material: certified Nordic (Scandinavian) spruce veneers
• Veneer construction: cross-banded
• Intended use: structural and load-bearing applications (roofing, flooring, wall sheathing, packaging, joinery)
• Workability: paintable, CNC-machinable, sawable and routable
• Thickness range: 5–50 mm (see available thicknesses)
• Standard formats and large-size capability (max 1525 x 3660 mm)
• Certifications: FSC™, FSC™ CW, PEFC CoC, PEFC
• Glue class: exterior glued
• Notable features: Biobond technology, low emissions, sustainable sourcing, easy installation
