Construction plywood panel WISA®for flooringfor floorfor interior
Add to favorites
Compare this product
Characteristics
- Function
- construction
- Applications
- for interior, for flooring, for floor
- Technical characteristics
- lightweight, wear-resistant, non-slip
- Material
- birch, resin
- Finish
- multilayer, printed, textured
- Appearance
- wood look
- Color
- brown
- Market
- industrial
- Other characteristics
- film-faced
- Ecological characteristics
- FSC certified, PEFC certified
- Thickness
Max.: 40 mm
(1.575 in)Min.: 6.5 mm
(0.256 in)- Width
Max.: 153 cm
(60 in)Min.: 100 cm
(39 in)- Length
Max.: 366 cm
(144.09 in)Min.: 200 cm
(78.74 in)
Description
Overview

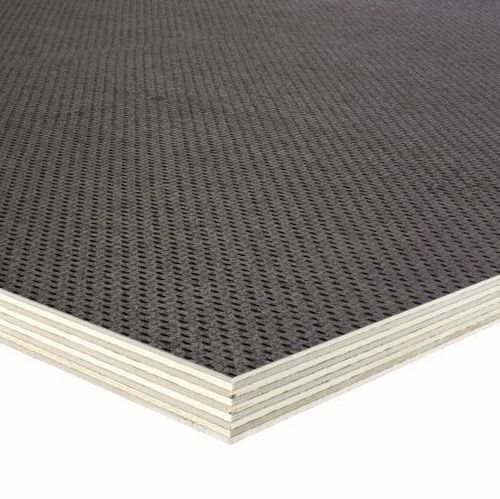

WISA®-Wire is a universal birch plywood flooring panel with a phenolic resin surface coating and an imprinted wire friction pattern. It is engineered for vehicle floors and industrial flooring where a durable, slip-resistant surface is required. Typical applications include trailers, trucks, light commercial vehicles (vans), warehouse floors, loading platforms and scaffolding.
Product information
Available thicknesses
6.5, 9, 12, 15, 18, 21, 24, 27, 28, 30, 31, 35, 40 mm
Standard size range
1220/1250 x 2440/2500 mm; 1500/1525 x 2500/3050/3660 mm; 1000/2000 x 2000/3000 mm
Maximum size
1525 x 3660 mm
DoP document numbers
UPM007CPR, UPM008CPR
Certificates
FSC™, FSC™ CW, PEFC CoC, PEFC
Performance
Wearing resistance: EN 438-2; r370
Friction properties: VDI 2700 part 14 µ0,23; EN 16165 Annex B R13
Technical specifications
WISA®-Wire is a universal birch plywood flooring panel with a phenolic resin surface coating and an imprinted wire friction pattern. It is engineered for vehicle floors and industrial flooring where a durable, slip-resistant surface is required. Typical applications include trailers, trucks, light commercial vehicles (vans), warehouse floors, loading platforms and scaffolding.
Product information
Available thicknesses
6.5, 9, 12, 15, 18, 21, 24, 27, 28, 30, 31, 35, 40 mm
Standard size range
1220/1250 x 2440/2500 mm; 1500/1525 x 2500/3050/3660 mm; 1000/2000 x 2000/3000 mm
Maximum size
1525 x 3660 mm
DoP document numbers
UPM007CPR, UPM008CPR
Certificates
FSC™, FSC™ CW, PEFC CoC, PEFC
Performance
Wearing resistance: EN 438-2; r370
Friction properties: VDI 2700 part 14 µ0,23; EN 16165 Annex B R13
Technical specifications
- Material: Birch veneers bonded in cross-bonded or special-oriented constructions
- Surface coating: Phenolic resin coating (dark brown film)
- Surface finish: Imprinted wire friction pattern on one face for enhanced grip
- Typical applications: trailers, trucks, light commercial vehicles (vans), warehouse floors, loading platforms, scaffolding
- Available thicknesses: 6.5–40 mm (see list above)
- Standard sizes and maximum size as listed
- DoP numbers: UPM007CPR, UPM008CPR
- Certifications: FSC™, FSC™ CW, PEFC CoC, PEFC
- Performance standards: Wearing resistance EN 438-2 r370; friction according to VDI 2700 part 14 and EN 16165 Annex B (R13)
Catalogs
No catalogs are available for this product.
See all of UPM‘s catalogsOther UPM products
