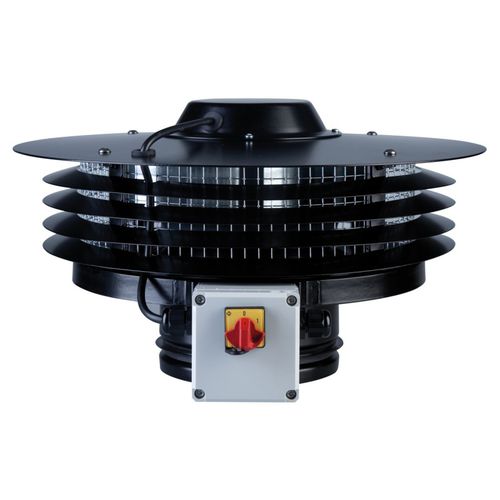

Centrifugal fan CTB SERIESroofcommercialoutdoor
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Installation
- roof
- Sector
- commercial
- Location
- outdoor
- Material
- steel
- Color
- black
- Other characteristics
- permanent extraction, automatic
- Air flow
Max.: 1,420 m³/h
(50,146.8 ft³/h)Min.: 450 m³/h
(15,891.6 ft³/h)- Weight
5.5 kg, 6.5 kg, 8 kg, 9 kg
(12.13 lb, 14.33 lb, 17.64 lb, 19.84 lb)- Height
229 mm, 242 mm, 266 mm, 288 mm
(9 in, 10 in, 10 in, 11 in)- Length
410 mm, 470 mm
(16 in, 19 in)- Power
30 W, 49 W, 57 W, 116 W
Description
Application
Air extraction from small tertiary premises (sanitary rooms, changing rooms).
Construction
Body in Z275 galvanized steel painted with black epoxy polyester.
Centrifugal reaction wheel with galvanized steel blades.
Horizontal rejection.
Integrated anti-bird mesh.
Base with rubber seal allowing direct connection to air networks.
IP55 padlockable proximity switch.
155°C thermal protection with automatic reset.
Motorization
IP54 AC motor, Class F, direct drive, single-phase power supply 230V, 50Hz, operating temperature -40°C / +70°C.
