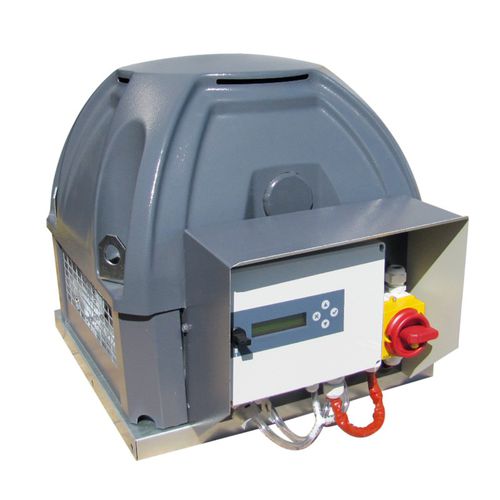

Extractor fan TCRH/V ECOWATT SERIES

roofrecessedcommercial

Low consumption ECM motor Built-in potentiometer: TCRH-V ECOWATT COP, CAV, VAV operation: TCRH-V ECOWATT PR Modbus Communicator: TCRH-V ECOWATT PR High performance reaction turbine in Z275 galvanized steel. Optimized suction pavilion. Direct coupling on the motor shaft. Plate, arm and motor support in Z275 galvanized steel. 4 lifting legs. Arm covers, protective grilles in pre-painted galvanized steel sheet, gray 7024 for corrosion class C5 environments. Meshes conforming to standard NF EN ISO 12499. ABS PMMA cap in grey RAL 7024. Vertical discharge version: addition of deflectors in RAL 7024 pre-painted sheet metal supplied factory-fitted. INTZ : padlockable proximity switch with position feedback. BDEZ : mounted pressure switch, air connection, factory set to 80 Pa only on TCRH-TCRV ECOWATT version. TCRH ECOWATT: horizontal discharge on 2, 3, 4 sides (with POPM). TCRV ECOWATT: vertical discharge on 2, 3, 4 sides (with POPM). TCRH ECOWATT PR: horizontal discharge on 2 or 3 sides (with POPM). TCRV ECOWATT PR: vertical discharge on 2 or 3 sides (with POPM). Engine: Electronically Commutated Motor (ECM): IP 44, class B single phase, 230V 50Hz. Electronically controlled thermal protection
