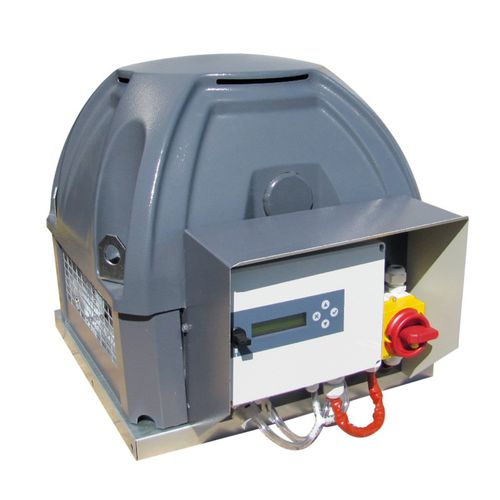

Box fan TCRH/V ECOWATT PR SERIES

roofcommercialoutdoor

High performance reaction turbine in Z275 galvanized steel. Optimized suction pavilion. Direct coupling on the motor shaft. Plate, arm and motor support in Z275 galvanized steel. 4 lifting legs. Arm covers, protective grilles in pre-painted galvanized steel sheet, gray 7024 for corrosion class C5 environments. Meshes conforming to standard NF EN ISO 12499. ABS PMMA cap in grey RAL 7024. Vertical discharge version: addition of deflectors in RAL 7024 pre-painted sheet metal supplied factory-fitted. INTZ : padlockable proximity switch with position feedback. BDEZ : mounted pressure switch, air connection, factory set to 80 Pa only on TCRH-TCRV ECOWATT version. TCRH ECOWATT: horizontal discharge on 2, 3, 4 sides (with POPM). TCRV ECOWATT: vertical discharge on 2, 3, 4 sides (with POPM). TCRH ECOWATT PR: horizontal discharge on 2 or 3 sides (with POPM). TCRV ECOWATT PR: vertical discharge on 2 or 3 sides (with POPM). Engine: Electronically Commutated Motor (ECM): IP 44, class B single phase, 230V 50Hz. Electronically controlled thermal protection. RMEC regulation: TCRH-TCRV ECOWATT PR Operation in COP (constant pressure), CAV (constant flow) or VAV (variable flow). Control box, IP55, factory mounted and wired. Backlit LCD display, with function keys on the front, optional remote control. Clear display of the measurement (pressure, flow rate) and the setpoint. Integrated ventilation fault signaling: dry contact available on the RMEC terminal block (cutting power under 230Vac: 3A resistive). ModBus RTU communication as standard.
