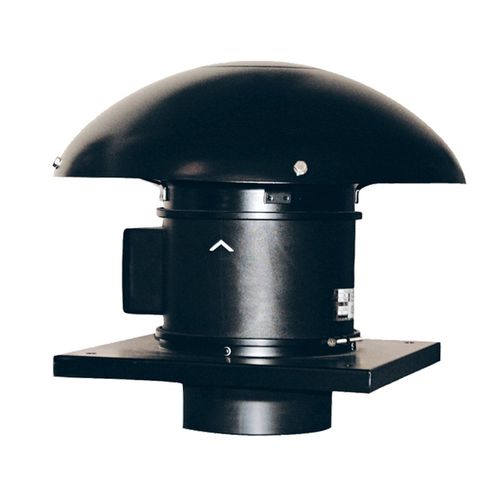

Extractor fan THC SERIESroofcommercialoutdoor
Add to favorites
Compare this product
Characteristics
- Technology
- extractor
- Installation
- roof
- Sector
- commercial
- Location
- outdoor
- Material
- metal, steel, sheet steel, plastic, ABS
- Color
- black
- Other characteristics
- permanent extraction, automatic
- Air flow
Min.: 100 m³/h
(3,531.5 ft³/h)Max.: 700 m³/h
(24,720.3 ft³/h)- Height
339 mm, 371 mm
(13 in, 15 in)- Width
400 mm
(16 in)- Power
Min.: 41 W
Max.: 117 W
Description
Extraction or insufflation.
Supplied as standard in extraction configuration.
Transform into insufflation turrets by inverting the central body.
Construction
Black technical plastic body.
Base and connecting flange made of sheet steel.
Steel cap with anti-bird mesh.
Black anti-corrosion polyester paint on all metal parts.
ABS propeller.
Motorization
External rotor AC motor, IP44, class F, integrated thermal protection with automatic reset.
3 speed single phase 230V, 50Hz.
Operating temperature: -20°C / +60°C.
