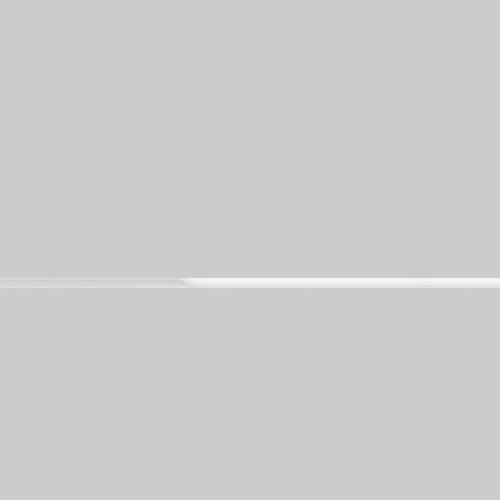

Ceiling lighting profile MOVE IT PRO 45

recessedLEDextruded aluminum

Description
Extruded aluminium linear profile designed for trimless recessed installation in 12.5 mm plasterboard ceilings. Intended for continuous linear lighting runs with flexible layout using L/T/X connectors. Integrated conductors support mains, emergency circuits and DALI control; inserts for lighting, emergency luminaires and sensors install without tools.

Quickinfo

• Protocol: DALI-2
• Ingress / protection class: IP20 / PC1
• Available lengths: 1,000 mm; 2,000 mm; 3,000 mm; 4,000 mm; custom cut on request

Performance note
Up to 192 lm/W (measured system efficiency)

Products and codes (selection)

• 086-5121137 — traffic white, length 1,000 mm — DALI-2
• 086-5122137 — traffic white, length 2,000 mm — DALI-2
• 086-5123137 — traffic white, length 3,000 mm — DALI-2
• 086-5124137 — traffic white, length 4,000 mm — DALI-2
• E83810....7 — traffic white, custom cut — DALI-2
• 086-5121138 — jet black, length 1,000 mm — DALI-2
• 086-5122138 — jet black, length 2,000 mm — DALI-2
• 086-5123138 — jet black, length 3,000 mm — DALI-2
• 086-5124138 — jet black, length 4,000 mm — DALI-2
• E83810....8 — jet black, custom cut — DALI-2

Notes
Trimless variant suited for 12.5 mm plasterboard ceilings. System supports continuous runs and flexible layouts via L/T/X connectors. Emergency lighting inserts and sensor modules available for central battery systems and integrated control.

Caractéristiques / spécifications techniques

• Profile material: extruded aluminium
• Profile dimensions: 45 mm width × 55 mm height
• Mounting: trimless recessed installation for 12.5 mm plasterboard ceilings
• Connectors: L / T / X connectors for flexible system design
• Integrated conductors: 3-phase copper conductors; 4 emergency lighting copper conductors (supports 2 emergency circuits); 2 DALI copper conductors
• Dimming protocol: DALI-2
• Protection class / Ingress: IP20 / PC1
• Standard lengths: 1,000 mm; 2,000 mm; 3,000 mm; 4,000 mm; custom cut available
• Surface finish: powder coated (standard colours: traffic white, jet black)
• Inserts: light inserts with multiple distribution patterns; emergency light inserts (escape sign and emergency luminaires) compatible with central battery systems; sensor inserts available
• Accessory integration: insets including high power adapter and converter can be installed flexibly and without tools
• Performance: up to 192 lm/W
