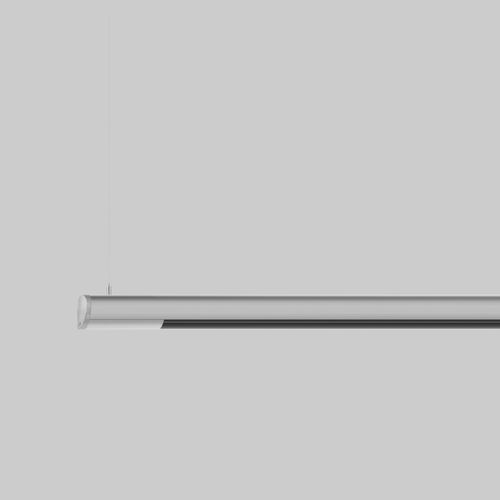

LED track light TRACK 60 CONEX

cylindricalaluminumhome

Quick info
DALI-2
IP20 / PC1 / 220-240 V
Available lengths: 1,181 mm, 2,351 mm, 2,936 mm

Description
Cylindrical power track module in aluminium; surface raw or powder coated; wall-/ceiling surface mounting or suspended mounting; height adjustment without tools; with integrated power track (L, N, PE) plus 2 DALI copper conductors; designed for continuous lighting systems; optionally connectors (flex or L- / T- / X-shape) and BLIND CHANNEL; power track connection rotatable around its own axis, which means that any spatial angle can be realized; insets, including high power adapter and converter can be installed flexibly and without tools.

Key features

• Construction: cylindrical power track module in aluminium
• Finishes: aluminium raw, pure white, jet black (powder coated)
• Mounting: wall or ceiling surface mounting, or suspended mounting
• Height adjustment without tools
• Integrated power track (L, N, PE) plus 2 DALI copper conductors for DALI-2 control
• Designed for continuous lighting systems
• Optional connectors: flex connector, L-, T-, X-shape connectors (CONEX family)
• Optional BLIND CHANNEL versions (plug / socket / through-wiring)
• Power track connection rotatable around its own axis for flexible spatial angles
• Insets and high-power adapters/converters can be installed flexibly and tool-free
• Combinable with TUBO and SETA product families
• Powerful 230V phase track capability

Included / related elements shown

• Connector CONEX
• CONEX flex connector, L / T / X CONEX connectors
• Blind channel variants for plug/socket and through wiring

Technical characteristics / specifications

• Dimming: DALI-2
• Protection class: IP20 / PC1
• Supply voltage: 220-240 V
• Integrated conductors: L, N, PE + 2 DALI copper conductors
• Material: Aluminium
• Finish options: pure white (RAL 9010), jet black (RAL 9005), aluminium raw
• Mounting options: wall surface, ceiling surface, suspended
• Available nominal lengths: 1,181 mm; 2,351 mm; 2,936 mm
• Special: height adjustment without tools; rotatable power track connection; supports continuous lighting layouts; supports insets, high power adapter and converter installations
