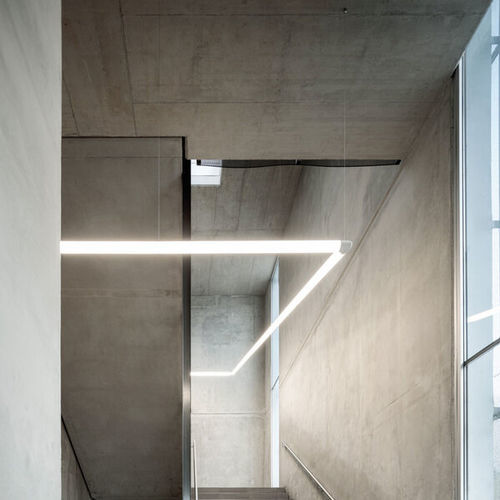

Hanging light fixture TUBO 60 CONEX

surface-mountedLEDcylindrical

Quickinfo

• 3000 K, 4000 K
• CRI ≥ 80; option CRI ≥ 90 / 3 SDCM (initial MacAdam)
• Up to 143 lm/W (configuration dependent)
• L90 / 50,000 h
• DALI-2
• Covers: Clear, Opal; linear prismatic optic option
• IP20; PC1; 220–240 V
• Available lengths: 1,181 mm; 1,474 mm; 2,351 mm; 2,936 mm

Description
Cylindrical lighting system in aluminium for surface (wall or ceiling) or suspended installation. Surface versions available raw or powder coated. Tool-free height adjustment. Includes feeder cable. Electrical connection between luminaires via CONEX plug/socket system. Luminaire connection is rotatable around its axis to realize any spatial angle. Optional cylindrical opal or clear cover with linear prismatic optic; optional CONEX connectors (flex, L-/T-/X-shape) and blind channel.

Features

• Material: aluminium
• Surface: raw aluminium or powder coated (colours: pure white, jet black)
• Mounting: wall mounting, ceiling surface mounting, suspended mounting
• Tool-free height adjustment
• Feeder cable included
• Electrical connection: CONEX plug/socket system
• Optional connectors: flexible, L-/T-/X-shaped; blind channel
• Rotatable luminaire connection for any spatial angle
• Cover options: cylindrical opal or clear cover with linear prismatic optic
• Light control via high-quality lens system for homogeneous illumination
• Energy-efficient LEDs with very good colour rendering

Light distribution

• Direct surface: 340°
• Direct suspended: 340°

Product groups / selection (excerpt)

• 058-3024037O — pure white, 3000 K, CRI ≥ 90, 106 lm/W, length 1,181 mm — DALI-2
• 058-3024137O — pure white, 4000 K, CRI ≥ 90, 106 lm/W, length 1,181 mm — DALI-2
• 058-3025537O — pure white, 3000 K, CRI ≥ 80, 124 lm/W, length 1,474 mm — DALI-2
• 058-3028637O — pure white, 4000 K, CRI ≥ 80, 133 lm/W, length 2,351 mm — DALI-2
• 058-3029137O — pure white, 4000 K, CRI ≥ 90, 110 lm/W, length 2,936 mm — DALI-2

Notes

• CONEX connector system enables plug/socket electrical connection between luminaires
• Combinable with SETA & TRACK systems
• Connector CONEX and creative arrangement options available

Technical specifications

• Commercial name / series: TUBO 60 CONEX
• Material: aluminium
• Finishes: powder coated (pure white, jet black) or aluminium raw
• Correlated colour temperatures: 3000 K, 4000 K
• Colour rendering index: CRI ≥ 80; CRI ≥ 90 (option)
• Colour tolerance: 3 SDCM (initial MacAdam)
• Maximum luminous efficacy: up to 143 lm/W (varies by configuration)
• Lifetime: L90 / 50,000 h
• Control: DALI-2
• Optics / covers: Clear Cover, Opal; linear prismatic optic option
• Connectivity: CONEX plug/socket; optional flex, L-/T-/X connectors; blind channel
• Mounting: surface (wall/ceiling) or suspended; height adjustment without tools
• Accessories: combinable with SETA & TRACK
• Protection: IP20
• Class / PC: PC1
• Voltage: 220–240 V
• Available lengths: 1,181 mm; 1,474 mm; 2,351 mm; 2,936 mm
• Included: feeder cable
• Homogeneity: high-quality lens system for homogeneous illumination
