Pendant lamp SETA 60 CONEX

aluminumcontemporarycorded

Quick info
3000 K, 4000 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
UGR ≤ 10, UGR ≤ 13, UGR ≤ 16, UGR ≤ 19
up to ↓ 9,030 lm / ↑ 9,270 lm
up to 167 lm/W
L90 / 100,000 h
DALI-2
Reflector: high gloss, faceted
IP20 / PC1 / 220–240 V
Lengths: 1,181 mm; 1,474 mm; 2,351 mm; 2,936 mm

Description

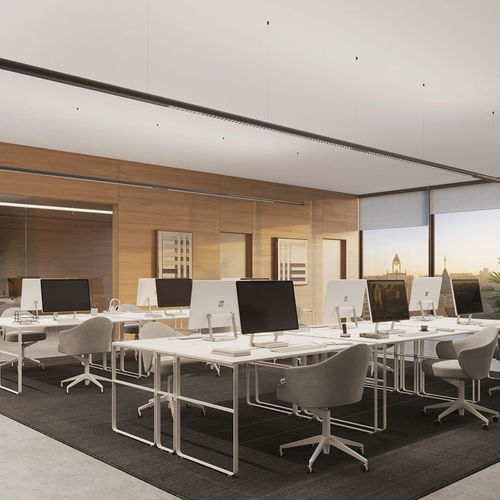

Cylindrical lighting system in aluminium designed for surface-mounted or suspended installation. Surface versions available raw or powder coated. Tool-free height adjustment for suspended versions. Integrated feeder cable and plug/socket electrical connection for fast on-site installation. Luminaire connection can rotate around its axis to allow precise aiming. High-gloss faceted reflector provides controlled direct light; indirect component uses integrated PC boards with dedicated lens system for uniform ceiling illumination and can be controlled separately. Energy-efficient LED modules with selectable colour temperatures and high colour rendering.

Options & variants

• Colour finishes: pure white, jet black, aluminium raw
• Reflector finishes: chrome, dark chrome
• Light distributions: direct surface, direct suspended, direct/indirect suspended, indirect suspended
• Connectable via CONEX connector system; combinable with TUBO & TRACK systems

Applications / Features

• Surface-mounted or suspended installation
• Tool-free height adjustment for suspended versions
• Rotatable luminaire connection for flexible aiming
• Separate control of indirect component for homogeneous ceiling illumination
• High efficacy up to 167 lm/W
• Compliant with DIN EN 12464-1 for UGR ≤ 19 (select versions)

Technical specifications

• Model family: SETA 60 CONEX
• Housing material: aluminium
• Finishes: powder coated (pure white, jet black) or aluminium raw
• Reflector: high gloss, faceted (options: chrome, dark chrome)
• Colour temperature: 3000 K or 4000 K
• CRI: ≥ 80 or ≥ 90 (versions available)
• Initial MacAdam: 3 SDCM
• Luminous flux (nominal): up to 9,030 lm (down) / up to 9,270 lm (up)
• Luminous efficacy: up to 167 lm/W
• Lifetime: L90 / 100,000 h
• Dimming/control: DALI-2
• Ingress protection: IP20
• Protection class: PC1
• Supply voltage: 220–240 V
• Lengths available: 1,181 mm; 1,474 mm; 2,351 mm; 2,936 mm
• Mounting: wall, ceiling surface, suspended
• Connections: feeder cable included; electrical connection via plug/socket system; optional connectors (flex, L/T/X); BLIND CHANNEL available
• Indirect light: integrated PC boards and dedicated lens system for homogeneous ceiling illumination (separately controllable)
• Combinability: compatible with CONEX connectors; combinable with TUBO and TRACK systems
