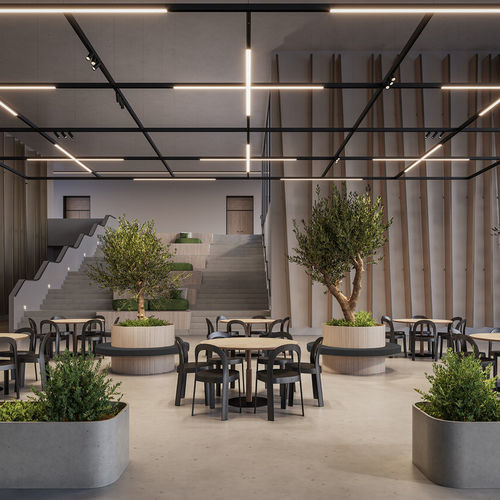

Surface mounted lighting profile MOVE IT PRO 45

suspendedLEDextruded aluminum

Description
Extruded aluminium profile 45 mm wide and 59 mm high designed for ceiling surface mounting or suspended installation. Tool-free height adjustment and modular insets enable flexible configuration for continuous lighting runs. Integrated conductors provide supply, emergency lighting circuits and DALI control, simplifying installation and enabling central-battery compatibility.

Quickinfo

• DALI-2
• IP20 / PC1
• Available lengths: 1,000 mm; 2,000 mm; 3,000 mm; 4,000 mm; custom cut

Key features

• Extruded aluminium profile: 45 mm width, 59 mm height
• Ceiling surface mounting or suspended mounting (cable suspension)
• Height adjustment without tools
• Designed for continuous lighting systems with L / T / X connectors and CURVE segments
• Integrated conductors: 3-phase copper; 4 emergency lighting copper (2 circuits); 2 DALI copper
• Custom cut possible
• Surface powder coated (standard colours: traffic white, jet black)
• Tool-free installation of insets, including high power adapter and converter
• Light inserts with multiple light distribution patterns
• Emergency inserts (escape sign and emergency luminaires) compatible with central battery systems; SELV emergency variants available
• Sensor inserts supported
• High efficacy option up to 192 lm/W

Variants (selection)

• Status | Article number(s) | Type | Dimming
  New; From Q4/26 | 086-521AA37 | traffic white, centerline radius 165 mm, poles internal | DALI-2
• New; From Q4/26 | 086-521AB37 | traffic white, centerline radius 330 mm, poles internal | DALI-2
• New; From Q4/26 | 086-521AC37 | traffic white, centerline radius 495 mm, poles internal | DALI-2
• New; From Q4/26 | 086-521BA37 | traffic white, centerline radius 165 mm, poles external | DALI-2
• New; From Q4/26 | 086-521BB37 | traffic white, centerline radius 330 mm, poles external | DALI-2
• New; From Q4/26 | 086-521BC37 | traffic white, centerline radius 495 mm, poles external | DALI-2
• New (track emergency examples) | 086-5111137 (length 1,000 mm) | traffic white track emergency | DALI-2
• New (track emergency SELV examples) | 086-5311137 (length 1,000 mm) | traffic white track emergency SELV | DALI-2

Performance note
Up to 192 lm/W (high efficiency)

Technical specifications

• Profile cross-section: width 45 mm, height 59 mm
• Material: extruded aluminium, surface powder coated
• Mounting: ceiling surface-mounted or suspended (cable suspension)
• Mounting accessories: L / T / X connectors and CURVE segments supported for continuous runs
• Integrated conductors: 3-phase copper + 4 emergency lighting copper (2 circuits) + 2 DALI copper
• Emergency options: dedicated emergency inserts and SELV variants; compatible with central battery systems
• Dimming / control: DALI-2
• Ingress protection: IP20 (PC1)
• Available standard lengths: 1,000 mm; 2,000 mm; 3,000 mm; 4,000 mm; custom cut available
• Efficiency: up to 192 lm/W (high efficiency variants)
• Insets: tool-free installation; variety of light distributions; sensor inserts supported
• Colours: examples include traffic white and jet black (powder coated)
