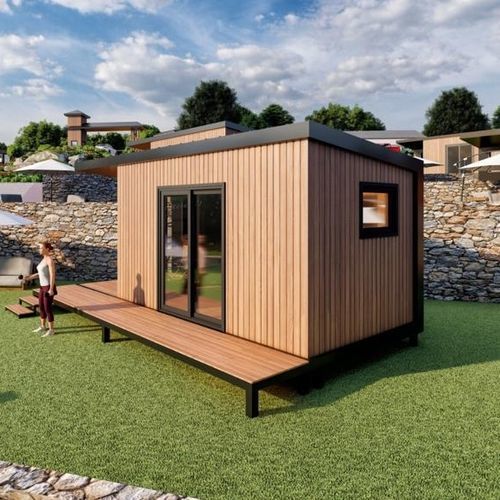

Commercial container building

residentialfor office

SPECIFICATIONS AND DATA TECHNICAL DATA - Snow Load: 70 kg/m³ - Wind Load: 80 km/h (50 kg/m²) - Chassis Load Capacity: 250 kg/m³ GENERAL - Main Frame: Manufactured from bent DKP sheet, special shaped edge carrier profiles are combined with crossbars to form the carrying system, with thicknesses of 2mm and 2.5mm. - Joining Elements: Made from DKP sheet. - Corner Carriers: Corner posts are manufactured from specially shaped DKP sheet, thicknesses of 2 to 2.5mm. - Transport System: Can be transported using 4 lifting lugs found on the container. FLOOR - Main Frame: Manufactured from box profile, edge carriers 40x60 1.5 mm profiles combined with crossbars to form the carrying system. - Connection Profiles: Crossbars every 600 mm on the short side and every 1000 mm on the long side, 40x60 box profile 1.5 mm and 2mm thickness. - Cladding: Floor cladding is either 16 mm betopan or 18mm plywood. - Surface Coating: 2.4 mm felt PVC used as surface coating, adhesive is applied across the entire surface during installation. CEILING - Main Frame: Manufactured from box profile, special shaped edge carrier 40x40 1.5 or 2 mm profiles combined with crossbars. - Connection Profiles: Crossbars every 900 mm, 40x40 1.5 to 2 mm profile. - Exterior Cladding: Roof cladding is 0.50 mm thick 27/200 corrugated galvanized sheet. - Interior Cladding: Ceiling cladding is 11 mm thick PVC panel. - Insulation: Thermal and sound insulation is provided by a 50 mm mineral wool blanket laid over the PVC panels. - Rainwater Drainage: Drained through galvanized roof trapezoids to the short sides, discharged freely.
