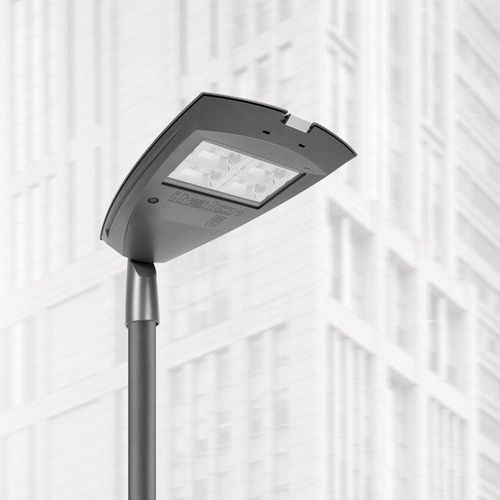

Urban lamp post ITALO
contemporarycast aluminumstainless steel

Urban lamp post - ITALO - AEC Illuminazione - contemporary / cast aluminum / stainless steel
Urban lamp post - ITALO - AEC Illuminazione - contemporary / cast aluminum / stainless steel
Urban lamp post - ITALO - AEC Illuminazione - contemporary / cast aluminum / stainless steel - image - 2
Urban lamp post - ITALO - AEC Illuminazione - contemporary / cast aluminum / stainless steel - image - 3
Urban lamp post - ITALO - AEC Illuminazione - contemporary / cast aluminum / stainless steel - image - 4
Urban lamp post - ITALO - AEC Illuminazione - contemporary / cast aluminum / stainless steel - image - 5
Urban lamp post - ITALO - AEC Illuminazione - contemporary / cast aluminum / stainless steel - image - 6
Add to favorites
Compare this product

Characteristics

Type
urban
Style
contemporary
Material
cast aluminum, stainless steel, extruded aluminum, with tempered glass diffuser
Light source
LED
Number of lights
single, 2 bulb
Shape
rectangular
Support type
straight
Protection class
IP66
Color
black
Length

615 mm, 794 mm, 960 mm
(24 in, 31 in, 38 in)

Width

343 mm, 432 mm, 514 mm
(14 in, 17 in, 20 in)

Color rendering index (CRI)

70 unit

Description

Screen printed in high transparency tempered flat glass: ITALO 1: 4mm thickness ITALO 2: 5mm thickness ITALO 3: 5mm thickness. Installation: Removable optical and gear tray compartment. Opening wiring harness and optical compartment with commonly used tools. Removable metal gear plate. Watertight membrane grommet. Integrated cable clamp. Weight and dimensions: ITALO 1: 615x343x106mm - 6.8kg ITALO 2: 805x432x122mm - 12kg ITALO 3: 960x514x151mm - 19kg Powder coating semi-gloss satiny gray cod. 2B. Corrosion protection: 1500hr saline fog ISO 9227. ELECTRICAL CHARACTERISTICS Insulation class: I, II. Power supply: 220-240V - 50/60Hz. LED current: 525mA | 700mA. Power Factor: >0.9 (at full load, PLM) >0.95 (at full load, F, DA, DAC).
