LED cable lighting ITALO 2 TS

other shapescast aluminumstainless steel

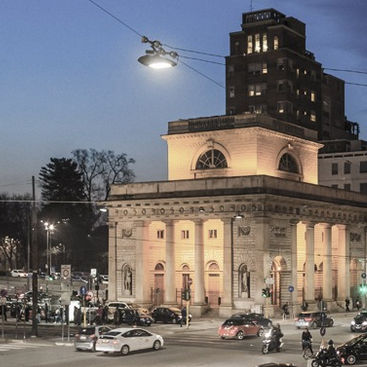

APPLICATIONS Suspended street LED lighting luminaire. MECHANICAL CHARACTERISTICS Die casting aluminium body UNI EN1706 with low copper content for high protection against aggressive marine environment. Heatsink in die-cast aluminum UNI EN 1706 with fins structure. Polyurethane seal without junction points. Closure hook in extruded aluminium with stainless steel spring. Screen printed in high transparency tempered flat glass 4mm thickness. Installation: on cable Ø6÷Ø12mm. Removable optical and gear tray compartment. Opening wiring harness and optical compartment with commonly used tools. Removable metal gear plate. Watertight membrane grommet. Integrated cable clamp. Weight and dimensions: 542x526x302mm - 12kg Protection degree IK09 | IP66 with membrane exchange pressure valve. Powder coating semi-gloss satiny gray cod. 2B. Corrosion protection: 1500hr saline fog ISO 9227. ELECTRICAL CHARACTERISTICS Insulation class: I, II. Power supply: 220-240V - 50/60Hz. LED current: 525mA | 700mA. Power Factor: >0.9 (at full load). Mains connection for cables max section 4mm2. Overvoltage protection up to 10kV in common and differential mode. Integrated SPD 10kV-10kA, type II, provided with LED signalling and thermal fuse for end-of-life load disconnection. Fuse optional. LED source lifetime: ≥100.000hr L90B10 ≥100.000hr L90, TM-21
